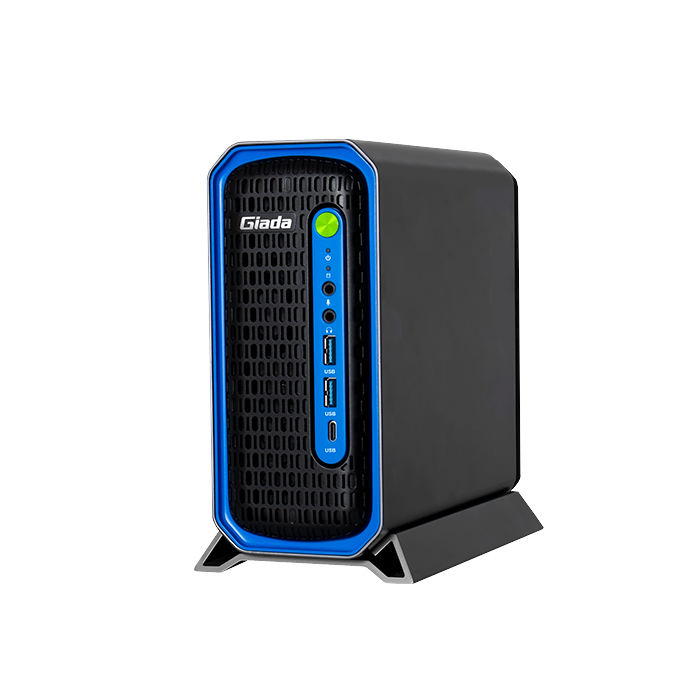

WA814 Workstation Computer 14/13th Gen

SKU: WA814-13x005xN9G-GIA

B760 Chipset Workstation with 14/13th Gen Processors

Key Features:

  • Intel LGA1700 Socket 12th/13th/14th Gen. Processors
  • Supports PCIe-powered Low Profile Graphics Cards
  • 2 x M.2, Support NVMe SSD, 1 x SATAIII
  • Supports Wi-Fi/BT module, Supports Wi-Fi 6/6E
  • Up to 96 GB, 2 x SO-DIMM DDR5-5600 MHz

Description

Adopting Intel 12/13/14th Gen. Core Processors

The workstation adopts Intel® B760 chipset, and it can support Intel® 12th/13th/14th generation socket type processors (TDP≤65W). It supports dual-channel DDR5 memory and it's optimized for AI training and inference, stable diffusion, Llama, LLMs, speech/image recognition, and generative AI.

Supporting Low Profile Graphics Cards

The WA814 features a PCIe X16 slot for expanding PCIe-powered low-profile graphics cards. The workstation has the power to deploy and manage cognitive technology platforms within the data science and AI space - including machine learning and deep learning workloads such as generative AI and computer vision.

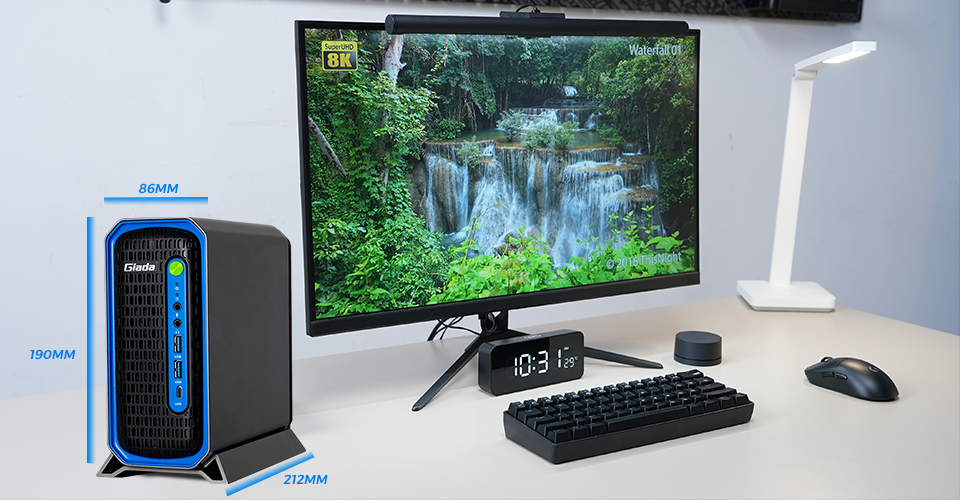

Compact Structure with Patent Design

Measuring only 3.46L, the WA814 features a patented design that ensures high hardware performance. It uses solid materials without redundancy, balancing heat dissipation and aesthetics, making it suitable for small to medium-sized businesses and personal studios.

Unparalleled Storage Flexibility

The WA814 provides users with powerful expandability. It offers 2 M.2 slot supporting PCIe 4.0 NVMe SSDs, with read/write speeds of 5 GB/s (40Gbps).





I/O port introduction



Download

More Information

Brand Giada Technology Inc.
Specifications

CPU

CPU

Intel® Core™ i5-13400 processor

Intel® Core™ i7-13700 processor

Max Turbo Frequency

4.80 GHz /5.20 GHz

Chipset

B760

Processing Units

14 Cores /16 Cores

TDP

65 W /65 W

Memory

Size

Up to 96 GB

Type

2 x SO-DIMM DDR5-5600 MHz

Storage

Socket 1

1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD

Socket 2

1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD

Socket 3

1 x SATAIII

Graphics

iGPU

Intel® UHD Graphics 730/770

Graphics Card

1 x PCIe X16 slot for Graphics Cards

GPU Cards Standardize

PCIe-powered (Max. Power Consumption 75W)

Low Profile Card (Max. Dimension 6.6” x 2.7”)

Front I/O

USB

1 x USB Type-C3.2 Gen2, 2 x USB3.2 Gen2

Audio

1 x MIC-IN, 1 x AUDIO-OUT

LED

1 x HDD_LED, 1 x PWR_LED

Button

1 x Power on

Rear I/O

Display Interface

1 x DP1.4 (Max. 7680 x 4320@60Hz, iGPU)
1 x HDMI2.0 (Max. 4096 x 2304@60Hz, iGPU)

Serial port

1 x RS232, 1 x RS232/422/485

USB

2 x USB3.2 Gen1, 2 x USB2.0

Ethernet

1 x 2.5GbE RJ45, 1 x 1 GbE RJ45

Antenna

2 x Internal Wi-Fi Antenna

System

Network Controller

1 x Realtek RTL 8111H Gigabit Ethernet

1 x Intel Ethernet Controller I226-V

Wi-Fi/BT

1 x E-Key (2230) for Wi-Fi/BT, Support Wi-Fi 6 /6E (CNVi)

TPM

Optional: TPM2.0

Power Requirement

DC-IN, 19 V/12.1 A

Dimensions

212 mm x 190 mm x 86 mm (8.87” x 7.48” x 3.38”)

Construction

Gray Aluminum Case, Black/Blue Plastic Panel

Operating System

Windows 11 (64bit)

Operating Temperature

0°C ~45°C (32°F~113°F) @0.7m/s Air Flow

Humidity

95% @ 40°C (non-condensing)

Certifications

CE, FCC Class B, UKCA
