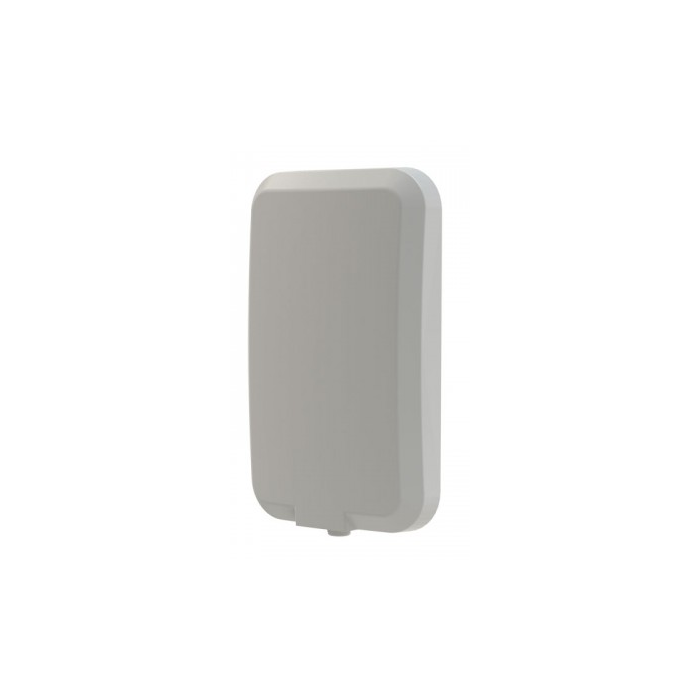

WMM4G-6-60 - 4x4 MiMo 4G/5G Directional Antenna

In stock
SKU:
WMM4G-6-60-5SP - 4x4 MiMo 4G/5G Directional Antenna 5m SMA M
Brand: Panorama Antennas

Supports full Cat18 (617-960/1710-6000MHz) 4x4 MiMo 4G/5G

High Directional gain 6-9dBi

Wall Mount or Mast Mount

Ideal for Branch Networks and Failover

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.

Electrical Data
Frequency range (MHz) 4x 4x 617-960/1710-6000
Operational bands 4x 4G/5G
Radiation pattern Directional
Nominal polarisation +/- 45deg / Vertical
Peak gain
(excl cable loss)+
617-960MHz 6dBi
1710-6000MHz 9dBi
Effi ciency - excluding cable loss (all bands) > 60%
Correlation co-effi cient ( all bands) < 0.2
Max input power (W) 20 Watts
Nominal impedance 50Ω
Mechanical Data
Dimensions (mm)
Height 507 (19.96”)
Width 307 (12.01”)
Depth 85 (3.34”)
Operating temp (°C) -40° / +80°C (-40° / 176°F)
Material ASA
Colour White
IP Rating IP66
Radome material certifi cations UL94-HB, UL746C-f2
Weight (g) 5100
Survival wind speed (m/s) 55
Typical wind load @ 45 m/s (N) 200
Mounting Data
Fixing wall mount / fl ush wall mount /mast mount
Mounting bracket material Coated steel / Aluminium / Stainless Steel
Pole diameter (mm) 20-50 / (0.78 - 1.96”)
Cable & Connector Data
Cable Type CS32 FRZH (Meets EN6722 / EN45545-2)
Diameter (mm) 5 (0.2”)
Length (m) 5 (16.4’)
Connector SMA(m) x 4

We build to order
