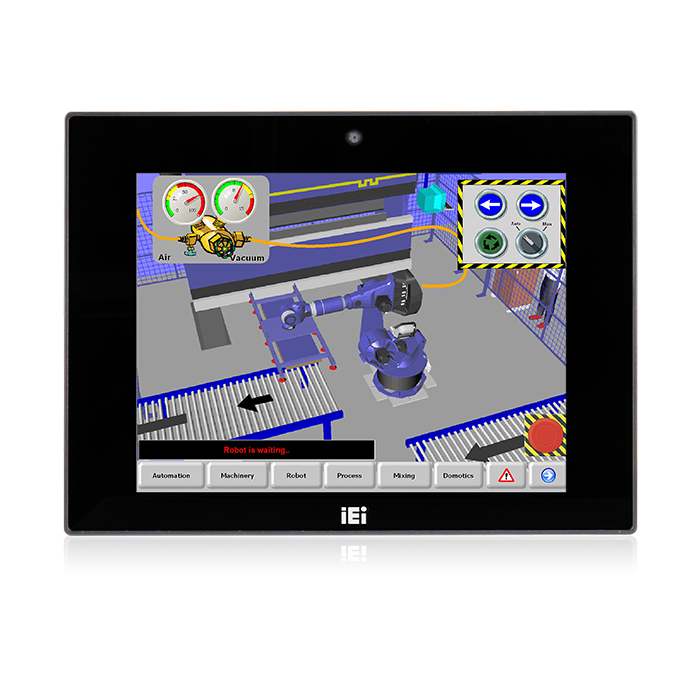

Shop AFL3-08A-BT 8.4" J1900 Panel PC

SKU: AFL3-08A-BT

8.4” 450cd/m² SVGA fanless panel PC with Intel Celeron J1900 quad core 2 GHz

Key Features:

8.4” light industrial interactive panel PC
9 V ~ 30 V wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
IP64-compliant front panel
IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Datasheet

Description

8.4” 450cd/m² SVGA fanless Panel PC with Intel® Celeron® J1900 quad core 2 GHz

Key Features:

8.4” light industrial interactive panel PC
9 V ~ 30 V wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
IP64-compliant front panel
IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Datasheet

Brand

IEI Integration Corp.

Specifications

System
CPU	Intel® Celeron® J1900 (quad core, 2.0 GHz)
Memory Max.	One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM pre-installed (system max. 8GB)
Storage	mSATA
I/O Interface
Ethernet	2 x PCIe GbE by RTL8111E controller
Audio	ALC892
Power
Power consumption	12V@2A(Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
Power Requirement	9 V ~ 30 V
Environment
Operating Temperature	-10°C~50°C
Safety & EMC	CE/FCC
Humidity	10% to 95% (non-condensing)
Storage Temperature	-20°C~60°C
Dimensions
Dimensions	233 x 175 x 50
Weight
Weight	0.8/2.44
LCD
Size	8.4”
Resolution	800 x 600 (4:3)
Brightness (cd/m2)	450
Contrast Ratio	600:1
LCD Color	16.2M
Pixel Pitch (mm)	0.213 (H) x 0.213 (V)
Viewing Angle (H-V)	160º / 140º
Touch
Touch Screen	5-wire resistive with RS-232 interface (anti-glare coating)
Touch Controller	EETI EXC3160
I/O Interface
I/O Interface	1 x RS-232 ((RJ45 connector))
	1 x RS-422/485 ((DB-9 connector))
	2 x USB 2.0
	2 x USB 3.2 Gen1x1
	1 x LAN (Gbe)
	1 x DC Input Jack (9-30V Lockable)
	1 x Reset Button
	1 x Power Switch
	1 x AT/ATX switch
	1 x Audio ((line-out))

AFL3-08A-BT-J1/R/2G-R14	8.4”500 cd/m² SVGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 2GB DDR3L RAM , with AG, R14

Package Content	2 x Setting kit 6 x Round head machine screw 4 x Pan head machine screw 2 x Fix holder 2 x Power cord 1 x Power adapter 1 x Touch pen
