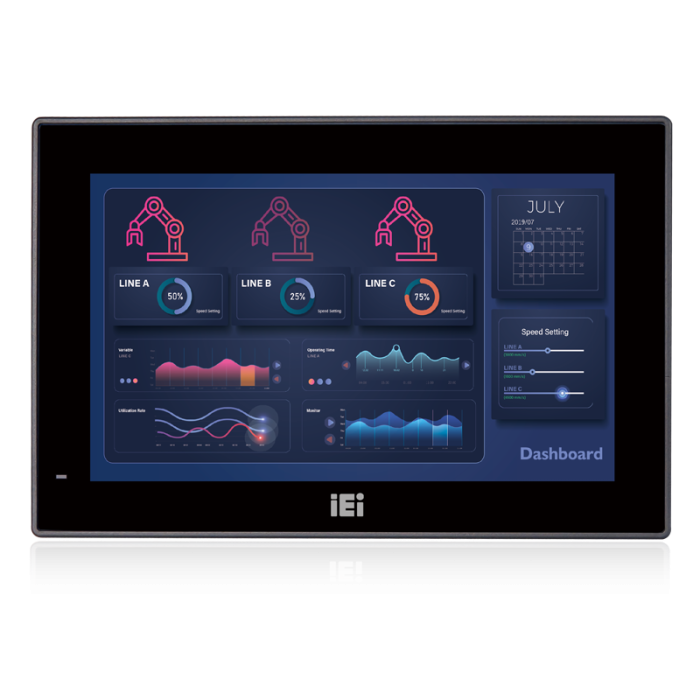

Shop AFL3-W07A-AL - 7" Celeron POE Panel PC

IEI Integration Corp.

SKU: AFL3-W07A-AL

Intel® Celeron N3350
(2M Cache, up to 2.4 GHz) TDP 6W

Datasheet

Description

7" 500cd/m2 1024x600 Panel PC with Intel® Celeron® Processor N3350 (6W) on-board Processor , on-baord POE at, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch,R10

W7” light industrial interactive panel PC
12V DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
On board IEEE802.3 at standard
IP65 compliant front panel
Touch screen wth anti-UV / anti-glare coating

Download

Datasheet

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Bluetooth	Bluetooth V4.1
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-20ºC ~ 50ºC
Safety & EMC	CE / FCC class A
Storage Temperature	-20°C~60°C
I/O Interface
Audio	AMP 2W (internal speaker)
Audio Codec	ALC269
Ethernet	2x PCIe GbE by Intel® i211 controller
RAM	one 204-pin 1866MHz DDR3L DIMMs support up to 8GB
LCD
Backlight MTBF	20000 (LED backlight)
Brightness (cd/m2)	500
Contrast Ratio	700:1
LCD Color	16.7M
Pixel Pitch (mm)	0.1506 (H) x 0.1432 (V)
Resolution	1024 x 600 (16:9)
Size	7”
Viewing Angle (H-V)	150º / 145º
Power
Power Requirement	12V , 3A
System
Cooling method / System Fan	Fanless
CPU	Intel® Celeron N3350 (2M Cache, up to 2.4 GHz) TDP 6W
Storage	1 x M.2 B+M key PCIe 2242 (USB/SATA signal)
Touch
Touch Controller	EXC80H60
Touch Screen	Projected capacitive type with USB interface (anti-UV)
Weight
Weight	0.73kg/1.81kg
I/O Interface
I/O Interface	1 x AT/ATX Switch
	1 x Clear CMOS
	2 x LAN(GbE)
	1 x Power In
	1 x Power Switch
	1 x Reset Button
	2 x USB 2.0
	2 x USB 3.0
