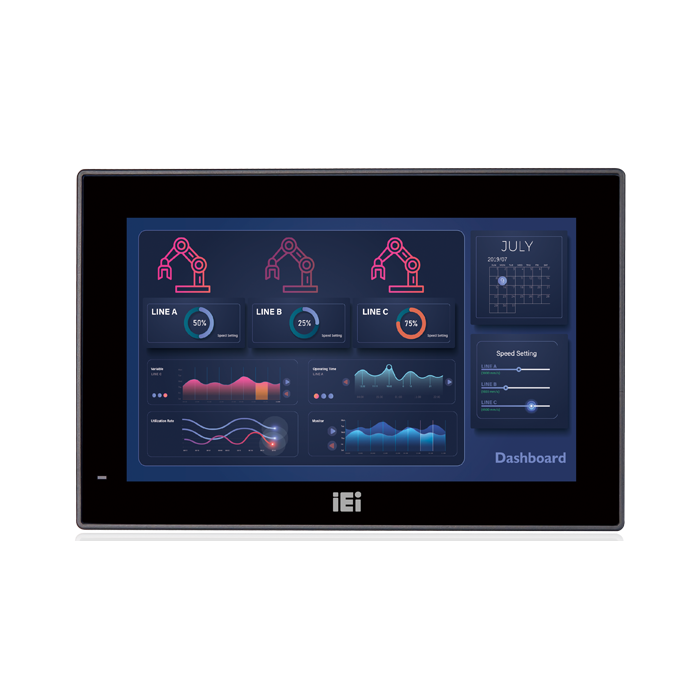

Shop AFL3-W07A-BT 7" Wide Celeron Panel PC

SKU: AFL3-W07A-BT

7" 500cd/m2 1024x600 HD fanless panel PC with Intel Celeron N2807 dual core 1.58 GHz

Datasheet

Description

7" 500cd/m2 1024x600 HD fanless Panel PC with Intel Celeron N2807 dual core 1.58 GHz

● W7”~8.4” light industrial interactive panel PC

● 9 V ~ 30 V wide range DC input with lockable DC jack

● Selectable AT/ATX power mode

● Built-in speakers

● One mSATA slot

● IP64/IP65 compliant front panel

● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Product Data Sheet

User Manual

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Wi-Fi	IEEE 802.11a/b/g/n/ac
Dimensions
Dimensions	191 x 127 x 43
Environment
Operating Temperature	-20°C~50°C
Storage Temperature	-20°C~60°C
I/O Interface
I/O Ports and Switches	2 x RS-232 COM port (DB-9 connector) 2 x USB 3.0 2 x GbE LAN 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V Lockable power jack
RAM	2GB DDR3L onboard RAM/4GB DDR3L onboard RAM
LCD
Backlight MTBF	20000 (LED backlight panel)
Brightness (cd/m2)	500
Contrast Ratio	700:1
LCD Color	16.2M
Pixel Pitch (mm)	0.0635 (H) x 0.1905 (V)
Resolution	1024 x 600
Size	7"
Viewing Angle (H-V)	150º/145º
Other Features
Camera	N/A
Microphone	N/A
Power
Power Requirement	9~30 VDC
Storage
Storage	mSATA
System
CPU	Intel® Celeron® N2807 (dual core, 1.58 GHz)
Touch
Touch Controller	EETI EXC3160
Touch Screen	projected capacitive type
Weight
Weight	0.73Kg
I/O Interface
I/O Interface	2 x RS-232(COM port (DB-9 connector))
	1 x Reset Button
	1 x Power Switch
	2 x LAN
	1 x AT/ATX switch
	2 x USB 3.0
	1 x DC Input Jack(9-30V Lockable power jack)
