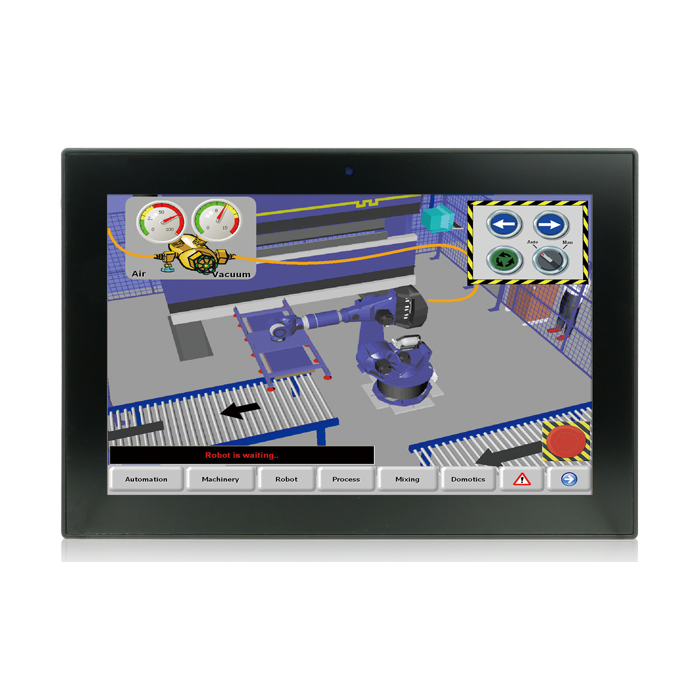

AFL3-W10A-BT - 10" Wide Celeron Panel PC

In stock
SKU:
AFL3-W10A-BT
Brand: IEI Integration Corp.

10.1” 350cd/m² 1280x800 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz


Enquire Now
Enquire about this product:

10.1” 350cd/m² 1280x800 fanless Panel PC with Intel® Celeron® J1900 quad core 2 GHz

● W10”~12.1” light industrial interactive panel PC

● Wide range DC input with lockable DC jack

● Selectable AT/ATX power mode

● Built-in speakers

● One mSATA slot

● IP64 compliant front panel

● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)


This product is listed in IEI Integration Corp.
Spec Item Description
Color
Color Black C
Communication
Wireless IEEE 802.11a/b/g/n/ac
Dimensions
Dimensions 262 x 181 x 42 (LxWxH) (mm)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 64 compliant front panel
Operating Temperature -10°C~50°C
Safety & EMC CE / FCC
Storage Temperature -20°C~60°C
I/O Interface
Audio AMP 2W + 2W (internal speaker)
Audio Codec ALC892
Ethernet 2 x PCIe GbE by RTL8111E controller
I/O Ports and Switches 1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V)
2 x USB 3.0
2 x USB 2.0
2 x RJ-45 for GbE LAN
1 x Power switch
1 x Audio port (line-out)
1 x Reset button
1 x AT/ATX switch
1 x 9-30V DC lockable power jack
LCD
Backlight MTBF 15000 hrs
Brightness (cd/m2) 350
Contrast Ratio 800:1
LCD Color 16.2M
Pixel Pitch (mm) 0.1695 (H)×0.1695 (V)
Resolution 1280 x 800 (16:10)
Size 10.1”
Viewing Angle (H-V) 170º / 170º
Other Features
Audio AMP 2W + 2W (internal speaker)
Camera 2-megapixel with low light function
Microphone digital microphone
OSD Function Software OSD
System Cooling Fanless
Physical Characteristics
Color Black C
Construction Front Panel PC + ABS Plastic
Cutout Dimensions 236 x 150 (W x H) (mm)
Dimensions (LxWxH) (mm) 262 x 181 x 42
Mounting Panel, Wall, Stand, Arm
VESA 75mm x 75mm
Net Weight 1.06 kgs
Power
Power consumption [email protected] (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
Power Requirement 9 V ~ 30 V
Storage
Storage mSATA
System
Cooling method / System Fan Fanless
CPU Intel® Celeron® J1900 (quad core, 2.0 GHz)
Memory Max. 8GB
On-board Memory One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM pre-installed
Storage mSATA
Touch
Touch Controller EETI EXC7200
Touch Screen Projected capacitive type
Weight
Weight 1.06/2.58 (Net/Gross, kgs)
