Shop AFL3-W15A-BT 15.6" Celeron Panel PC

End of Life

SKU: AFL3-W15A-BT

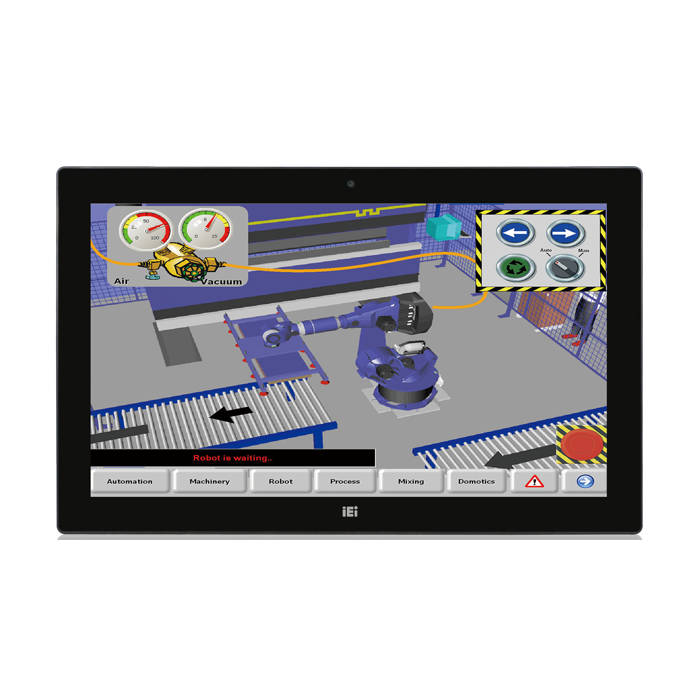

Wide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz

Datasheet

Description

Wide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz

● W15” light industrial interactive panel PC

● 9 V ~ 30 V wide range DC power input

● Selectable AT/ATX power mode

● Built-in speakers

● One mSATA slot

● IP64 compliant front panel

● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Product Data Sheet

User Manual

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Wi-Fi	IEEE 802.11a/b/g/n/ac
Dimensions
Dimensions	396 x 250 x 53
Environment
Operating Temperature	-20°C~50°C
Storage Temperature	-20°C~60°C
I/O Interface
I/O Ports and Switches	1 x RS-232 COM port (RJ-45 connector) 1 x RS-232/422/485 COM port (DB-9 connector) (RI/5V/12V) 2 x USB 2.0 2 x USB 3.0 2 x GbE LAN 1 x Power switch
RAM	One 204-pin 1333MHz single-channel DDR3L SDRAM,2GB pre-installed (system max. 8GB)
LCD
Backlight MTBF	50000 (LED backlight panel)
Brightness (cd/m2)	400
Contrast Ratio	500:1
LCD Color	16.2M
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1366 x 768
Size	15.6"
Viewing Angle (H-V)	170°/160°
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
Power
Power Requirement	9~30 VDC
Storage
Storage	mSATA , 2.5” SATA 3Gb/s HDD bay
System
Chipset	N/A
CPU	Intel® Celeron® J1900 (quad core, 2 GHz)
Touch
Touch Controller	PenMount DMC9000/ EETI EXC7200
Touch Screen	5-wire resistive type with RS-232 interface / projected capacitive type with USB interface
Weight
Weight	3.3Kg
I/O Interface
I/O Interface	1 x Power Switch
	2 x LAN(GbE LAN)
	2 x USB 3.0
	1 x Audio((line-out))
	1 x AT/ATX switch
	1 x Reset Button
	1 x RS-232((RJ-45 connector))
	1 x RS-422/485(COM port(DB-9 connector) (RI/5V/12V))
	2 x USB 2.0
	1 x DC Input Jack(9-30V lockable power jack)
