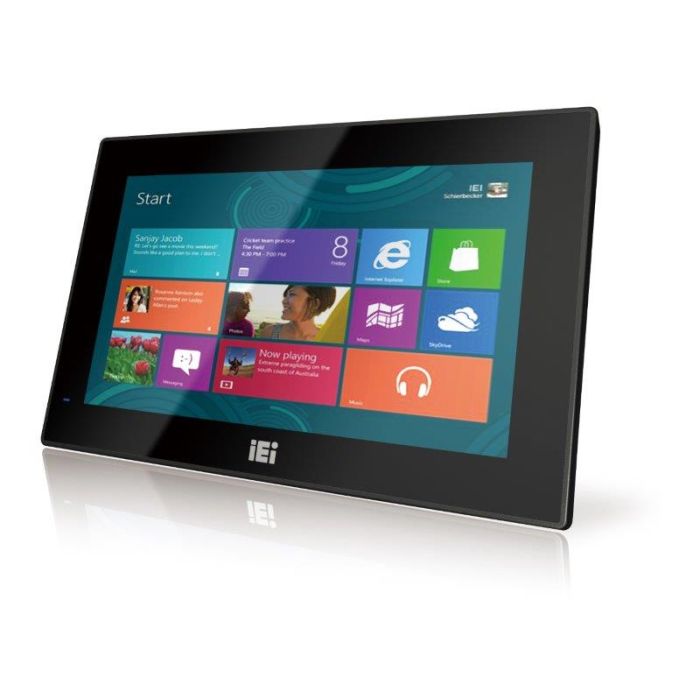

AFL3-W15C-ULT3 15" Wide Panel PC

In stock
SKU:
AFL3-W15C-ULT3
Brand: IEI Integration Corp.

Wide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz


Enquire Now
Enquire about this product:

Wide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz

● W15” light industrial interactive panel PC

● 9 V ~ 30 V wide range DC power input

● Selectable AT/ATX power mode

● Built-in speakers

● One mSATA slot

● IP64 compliant front panel

● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)


This product is listed in IEI Integration Corp.
Spec Item Description
Communication
Bluetooth Bluetooth v4.0
Wireless IEEE 802.11a/b/g/n/ac
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 64 compliant front panel
Operating Temperature -20°C~50°C
Safety & EMC CE / FCC
Storage Temperature -20°C~60°C
I/O Interface
Audio AMP 3W + 3W (internal speakers)
Audio Codec ALC892
Ethernet 2 x Intel® I211 PCIe GbE controller
I/O Ports and Switches 1 x RS-232 by DB-9 (RI/5V/12V)
1 x RS-232/422/485 by DB-9 (RI/5V/12V)
2 x GbE LAN
4 x USB 3.0
1 x HDMI output
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9-30V lockable power jack
RAM Two 260-pin 2133/1867 MHz dual-channel
DDR4 SO-DIMMs (system max. 32 GB)
LCD
Backlight MTBF 50000 (LED backlight)
Brightness (cd/m2) 400
Contrast Ratio 500:1
LCD Color 16.2M
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Resolution 1366 x 768 (16:9)
Size 15.6""
Viewing Angle (H-V) 170º / 160º
Other Features
Camera 2-megapixel with low light function
Microphone digital microphone
OSD Function Software OSD
System Cooling Fanless
Physical Characteristics
Color Black C
Construction Front Panel PC + ABS Plastic
Dimensions (LxWxH) (mm) 396 x 250 x 64
Mounting Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Net Weight 4.5Kg
Power
Power consumption 12V@6A (Intel® Core™ i5-6300U CPU with 4GB DDR4 2133 MHz DDR4 memory)
System
Cooling method / System Fan Fanless
CPU 6th Generation Intel® Core™ i5 and Celeron® on-board processor
Storage 1 x 2.5” SATA 3Gb/s HDD bay
1 x M.2 M key PCIe storage (2280 or 22110)
1 x mSATA slot
Touch
Touch Controller PenMount DMC9000/ EETI EXC7200
Touch Screen 5-wire resistive type with RS-232 interface / projected capacitive type with USB interface
Weight
Weight 4.5/6.5Kg
I/O Interface
I/O Interface 1 x RS-232(DB-9 (RI/5V/12V))
1 x RS-422/485(DB-9 (RI/5V/12V))
4 x USB 3.0
1 x HDMI(output)
2 x LAN(Gbe)
1 x Reset Button
1 x Power In(9-30V lockable power jack)
1 x AT/ATX switch
1 x Power Switch
