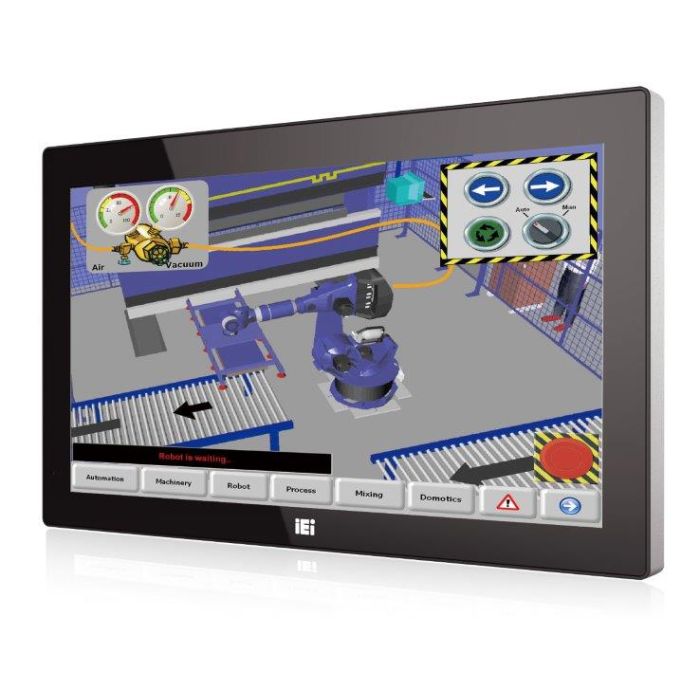

Shop AFL3-W19C-ULT3 18.5" Celeron Panel PC

End of Life

SKU: AFL3-W19C-ULT3

Intel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor or Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor

Datasheet

Description

Intel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor or Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor

● 18.5” light industrial interactive panel PC

● Wide range DC power input

● Selectable AT/ATX power mode

● Built-in speakers

● One mSATA slot

● IP64 compliant front panel

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Download

Product Data Sheet

User Manual

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Bluetooth	Bluetooth v4.0 (M.2 slot)
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 64 compliant front panel
Operating Temperature	-20°C~50°C
Safety & EMC	CE / FCC
Storage Temperature	-20°C~60°C
I/O Interface
Audio	AMP 3W + 3W (internal speaker)
Audio Codec	ALC892
Ethernet	2 x Intel® I211-AT PCIe GbE controller
I/O Ports and Switches	1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack
RAM	Two 260-pin DDR4 SO-DIMMs (system max.32GB)
LCD
Backlight MTBF	30,000 (LED backlight panel)
Brightness (cd/m2)	250
Contrast Ratio	1000:1
LCD Color	262K
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1366 x 768 (16:9)
Size	18.5""
Viewing Angle (H-V)	170º/160º
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
OSD Function	Software OSD
System Cooling	Fanless
Physical Characteristics
Color	Black C
Construction Front Panel	PC + ABS Plastic
Cutout Dimensions	443 x 261 (W x H) (mm)
Dimensions (LxWxH) (mm)	470 x 290 x 70
Mounting	Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Net Weight	7.3Kg
Power
Power consumption	[email protected]
Power Requirement	9 V ~ 30 VDC
System
Cooling method / System Fan	Fanless
CPU	Intel® Core™ i5 and Celeron® ULT Processor
Storage	1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot
Touch
Touch Controller	EETI EXC3180
Touch Screen	Projected capacitive type with USB interface
Weight
Weight	7.3/10Kg
I/O Interface
I/O Interface	1 x HDMI(output)
	4 x USB 3.0
	1 x Power In(9-30V lockable power jack)
	1 x RS-232(DB-9 (RI/5V/12V))
	2 x LAN(Gbe)
	1 x Reset Button
	1 x Power Switch
	1 x AT/ATX switch
	1 x RS-422/485(DB-9 (RI/5V/12V))
