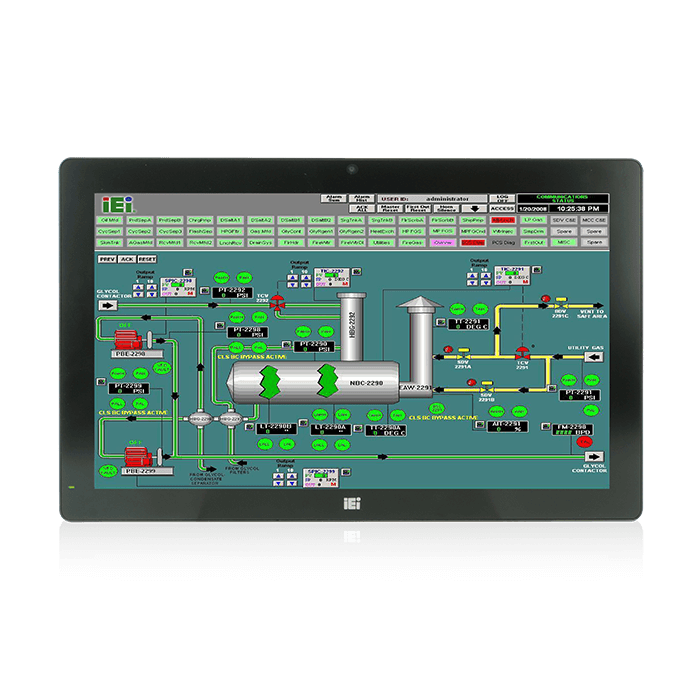

AFL3-W22C-ULT3 21.5" Fanless 6th gen Celeron 3955U/i5-6300U
In stock
SKU:
AFL3-W22C-ULT3
Brand: IEI Integration Corp.
Wide 21.5” 250 cd/m² 1920x1080 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,with AG,R13
Enquire Now
Enquire about this product:
- W21.5” light industrial interactive panel PC
- 9 V ~ 30 V wide range DC power input
- Selectable AT/ATX power mode
- Built-in speakers
- One mSATA slot
- IP64 compliant front panel
- IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
| Spec Item | Description |
|---|---|
| System | |
| CPU | Intel® Core™ i5 and Celeron® ULT Processor |
| Storage | 1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot |
| Communication | |
| Bluetooth | v4.0 (M.2 slot) |
| Wi-Fi | IEEE 802.11a/b/g/n/ac |
| I/O Interface | |
| Ethernet | 2 x Intel® I211-AT PCIe GbE controller |
| Audio | AMP 3W + 3W (internal speaker) |
| Audio Codec | ALC892 |
| RAM | Two 260-pin DDR4 SO-DIMMs (system max.32GB) |
| I/O Ports and Switches | 1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack |
| Environment | |
| Operating Temperature | -20°C~50°C |
| Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -20°C~60°C |
| IP Level | IP 64 compliant front panel |
| Physical Characteristics | |
| Color | Black C |
| Mounting | Panel, Wall, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
| Dimensions (LxWxH) (mm) | 528 x 336 x 68 |
| Construction Front Panel | PC + ABS Plastic |
| Weight | |
| Weight | 8.27/11.27 |
| LCD | |
| Size | 21.5"" |
| Resolution | 1920 x 1080 |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 248.25 (H) × 248.25 (V) |
| Viewing Angle (H-V) | 170°(H) / 160°(V) |
| Backlight MTBF | 30,000 (LED backlight panel) |
| Touch | |
| Touch Screen | Projected capacitive type with USB interface |
| Touch Controller | EETI EXC3180 |
| Other Features | |
| Camera | 2-megapixel with low light function |
| OSD Function | Software OSD |
| Microphone | digital microphone |
| I/O Interface | |
| I/O Interface | 1 x RS-422/485(DB-9 (RI/5V/12V)) |
| 4 x USB 3.0 | |
| 1 x Power In(DC jack) | |
| 2 x LAN(GbE) | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 1 x RS-232(DB-9 (RI/5V/12V)) | |
| 1 x HDMI | |
