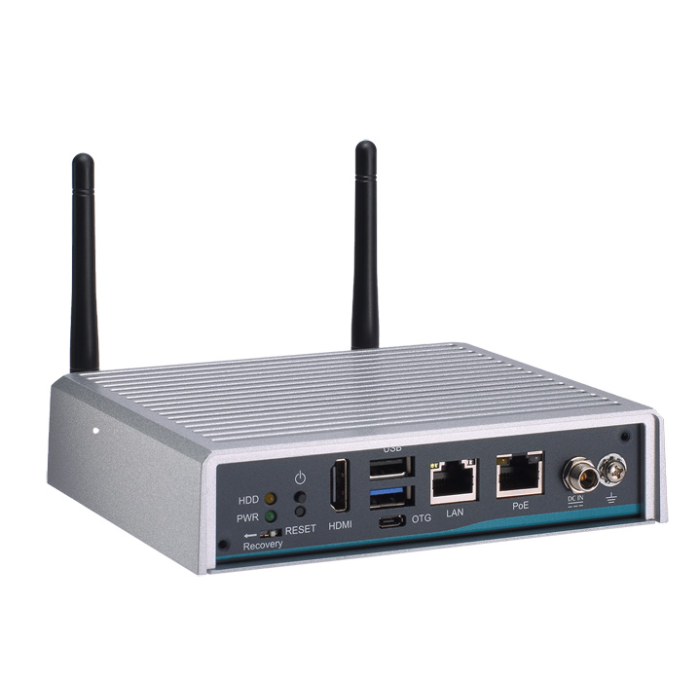

AIE100-903-FL Fanless PC NVIDIA Jetson Nano

SKU: AIE100-903-FL

Fanless Edge AI System with NVIDIA® JETSON™ Nano SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB

Datasheet

Description

NVIDIA® Jetson™ Nano with Maxwell™ architecture with 128 NVIDIA CUDA® cores

High AI computing performance for GPU-accelerated processing

Ideal for edge AI smart city applications

Optional IP42 cover kit for semi-outdoor applications

Supports one 15W GbE PoE for camera

Wide operating temperature from -30°C to +60°C

JetPack supported

Datasheet

User Manual

Brand

Axiomtek

Specifications

CPU	CPU Board: NVIDIA® Jetson™ Nano CPU: Quad-core ARM® Cortex®-A57 MPCore processor
GPU	NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores
Chipset	SoC integrated
System Memory	1 x 4GB 64-bit LPDDR4 onboard
COM	N/A
USB	1 x USB 3.0 1 x USB 2.0 1 x Micro USB
Ethernet	1 x 10/100/1000 Mbps Ethernet (Via JETSON™ Nano) 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
Display	1 x HDMI 2.0 with 4K2K supported
Digital I/O	N/A
Audio	N/A
Storage	Onboard 16GB eMMC (via Jetson™ Nano) 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot 1 x Micro SD slot
Expansion	1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot
Others	1 x Recovery switch 1 x Reset button 1 x Power button 1 x 12 VDC power input connector 2 x SMA-type antenna connector
Power Supply	12 VDC screw type
Watchdog Timer	Built-in Nano
Construction	Aluminum extrusion and heavy-duty steel, IP42
Operating Temperature	30°C to +60°C (-22°F to +140°F)
Relative Humidity	10% - 95%, non-condensing
Vibration	3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)	147.4 x 129.8 x 34.6 mm (5.8" x 5.11" x 1.36")
Weight (net/gross)	TBC
Certifications	CE, FCC Class A
EOS Support	Linux Ubuntu 18.04
Mounting	Wall mount kit DIN-rail kit VESA mount kit
