Shop AM300 Series LoRaWAN Ambience Sensor

SKU: AM307-915M/AM319-915M-HCHO/AM319-915M-O3

AM300 Series - LoRaWAN Ambience Monitoring Sensor 4.2 Inch E-ink 9 Sensors in 1

Datasheet

Description

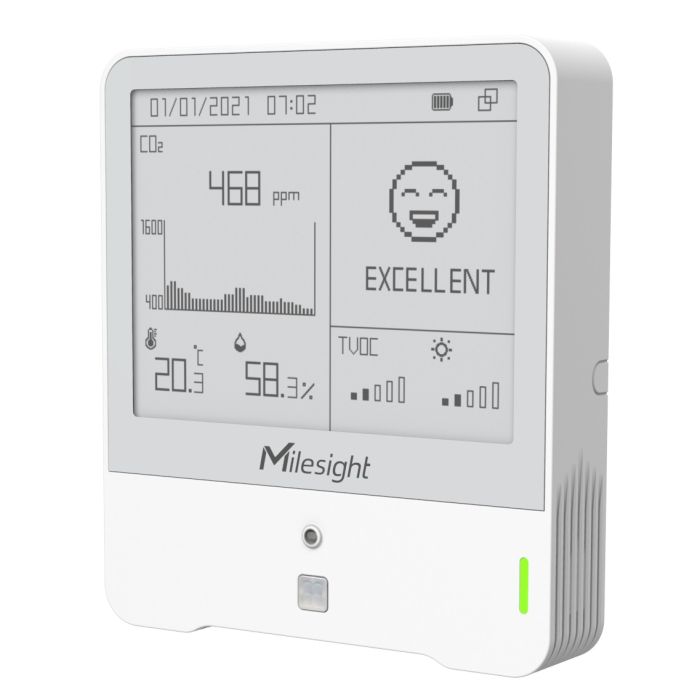

The AM300 series are compact indoor ambience monitoring sensors for the measurement of temperature, humidity, light, CO2 concentration, HCHO/O3 level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM300 series is widely used for offices, stores, classrooms, hospitals, etc. Sensor data is transmitted using LoRaWAN technology. Combining Milesight LoRaWAN gateway and Milesight IoT Cloud, users can manage all sensor data remotely and visually.

Features:

Integrated with multiple sensors like humidity, temperature, CO2, light, barometric pressure, PM2.5, PM10, etc.
Multiple display modes and clear emoticon to easily understand the comfort levels via screen
Support batteries or DC power supply
Equipped with traffic LED and buzzer to indicate device status and threshold alarms
Support more than 20,000 data records store locally
Compliant with standard LoRaWAN gateways and network servers
Quick and easy management with Milesight IoT Cloud

Download

Datasheet

Ordering Codes

User Manual

More Information

Specifications

Model			AM307	AM319
Wireless Transmission		Technology	LoRaWAN®
		Frequency	CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
		Tx Power	16dBm (868 MHz)/22dBm (915 MHz)/19dBm (470 MHz)
		Sensitivity	-137dBm @300bps
		Work Mode	AM307: Class A	AM319: Class C
Sensors	Temperature	Range	-40°C – 85°C
		Accuracy	± 1°C
		Resolution	0.1°C
	Humidity	Range	0% – 100% RH
		Accuracy	± 3%
		Resolution	0.5% RH
	PIR	Detection Area	80 ° Horizontal, 55 ° Vertical
		Detection Range	5 m
		Status	Vacant/Occupied
	Light	Range	0-60000 Lux (display as 6 levels, 0-5)
	TVOC	Range	0-500 (IAQ Index)
		Accuracy	±15 %
	Barometric Pressure	Range	300 – 1100 hPa (-40°C – 85°C)
		Accuracy	±0.6 hPa
		Resolution	0.1 hPa
	Carbon Dioxide (CO2)	Range	400 – 5000 ppm	400 – 2000 ppm
		Accuracy	±30 ppm or ±3 % of reading	±50 ppm or ±5 % of reading
		Resolution	1 ppm	1 ppm
	PM2.5 & PM10	Range	—	0 – 1000 μg/m3
		Accuracy	—	0-100(±10μg/m3), 100-1000(±10 %)
		Resolution	—	1 μg/m3
	Formaldehyde (HCHO)*	Range	—	0 – 6 mg/m3
		Accuracy	—	±10 %
		Resolution	—	0.01 mg/m3
	Ozone (O3)*	Range	—	0 – 10 ppm
		Accuracy	—	±5 % FS
		Resolution	—	0.01 ppm
Display & Configuration		Display	4.2-inch Black & White E-Ink Screen
		Button	1 × Power Button + 1 × Reset Button
		LED & Buzzer	1 × LED Indicator + 1 × Buzzer
		Configuration	1. Mobile App via NFC 2. PC software via NFC or USB Type-C port
Physical Characteristics		Power Supply	4 × 2700 mAh ER14505 Li-SOCl2 battery	5V/1A by Type-C Port
		Operating Temperature	-20°C – 60°C (E-Ink Screen: 0°C – 40°C)
		Relative Humidity	10% – 90% (non-condensing)
		Ingress Protection	IP30
		Dimension	100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
		Installation	Wall Mounting
