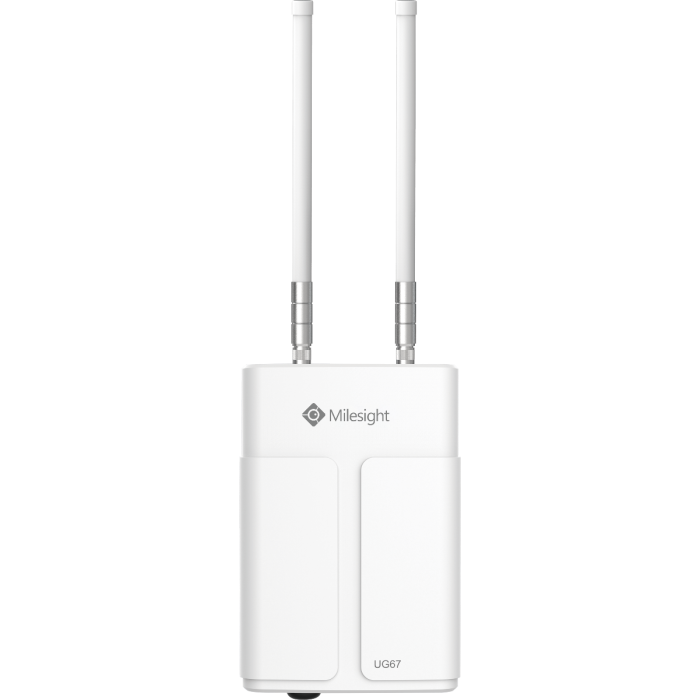

UG67 IP67 Outdoor LoRaWAN Gateway with LTE

In stock
SKU:
UG67-L04AU-915M
Brand: Milesight IOT

For partner & project pricing, please contact us.

IP67 Outdoor LoRaWAN Gateway with LTE

Key Features:

  • IP67 Rating
  • 64-bit Quad-Core Processor
  • New SX1302 LoRa Chip
  • Built-in Supercapacitor
  • Multiple Backhaul Connectivities
  • Internal Antenna Design
  • Embedded Network Server
  • Compatible with Multiple Network Servers

Enquire Now
Enquire about this product

The UG67 is an 8-channel outdoor LoRaWAN gateway. With its SX1302 LoRa chip and high-performance quad-core CPU, the UG67 can connect to over 2000 nodes. The UG67 has a range of up to 15 kilometres and an IP67 weatherproof case, making it excellent for smart agriculture, smart metering, and a variety of other outdoor applications. Not only does the UG67 enable numerous back-haul backups through Ethernet, Wi-Fi, and cellular, but it also includes integrated standard network servers (such as TTI, ChirpStack, and so on) as well as a built-in network server and Milesight IoT Cloud for easy deployment.

Key Features:

  • IP67 Rating
  • 64-bit Quad-Core Processor
  • New SX1302 LoRa Chip
  • Built-in Supercapacitor
  • Multiple Backhaul Connectivities
  • Internal Antenna Design
  • Embedded Network Server
  • Compatible with Multiple Network Servers

This product is listed in Industrial Automation, Mining, Milesight IOT, 5G/LTE Gateways & RF, LoRaWAN Gateways

Model

UG67

Hardware System

CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory 512 MB DDR4 RAM
Flash 8 GB eMMC

LoRaWAN®

Antenna Fully Integrated Internal Antenna (Optional: 2 × 50 Ω N-Female External Antenna Connector)
Channel 8
Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Ethernet Interface

Port 1 × RJ45 (PoE PD Supported)
Physical Layer 10/100/1000 Base-T (IEEE 802.3)
Data Rate Rate 10/100/1000 Mbps (Auto-Sensing)
Interface Auto MDI/MDIX
Mode Full or Half Duplex (Auto-Sensing)

Wi-Fi

Antenna Fully Integrated Internal Antenna
Standards IEEE 802.11 b/g/n
Tx Power 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)

Cellular Interface (Optional)

Antenna Fully Integrated and Internal Antenna
SIM Slot 1

GPS

Antenna Internal Antenna
Sensitivity -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
Position Accuracy <2.5 m CEP

Software

Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability WAN Failover

Power Supply and Consumption

Power Supply 1. 1 × 802.3 af PoE input
2. 1 × 12 VDC with M12 Connector
Consumption Typical 3.6 W, Max 4.8 W

Physical Characteristics

Ingress Protection Protection IP67
Dimensions 250 x 172 x 92 mm
Mounting Wall or Pole Mounting

Others

Reset Button 1 × RST
Console Port 1 × Type-C Port
LED Indicators 1 × SYS, 1 × LoRa, 1 × LTE
Built-in Watchdog, RTC, Timer
Certification CE, FCC

Environmental

Operating Temperature -40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance Above 60°C
Storage Temperature -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
