VS121 LoRaWAN AI Powered Workplace Sensor

SKU: VS121

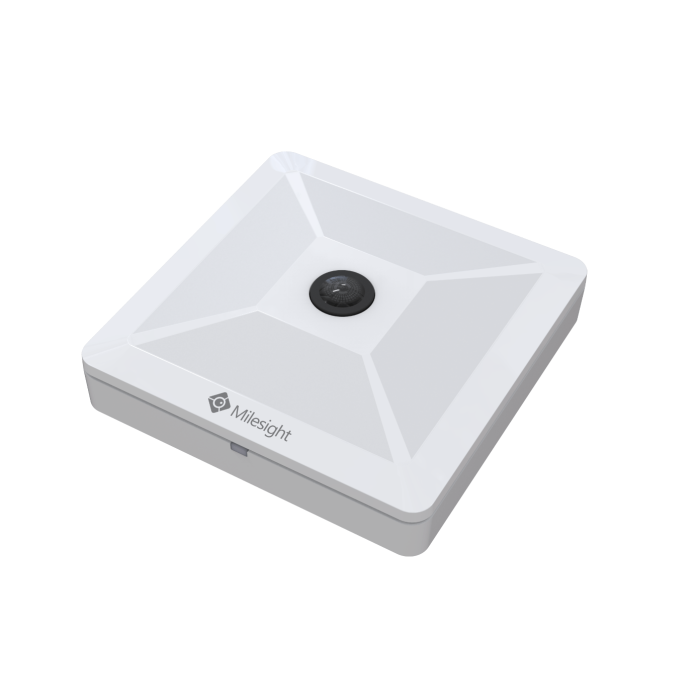

VS121 AI Workplace LoRaWAN Sensor People/Object Detection

Description

VS121, based on Artificial Intelligence (AI) technology, is an AI workplace sensor designed to monitor occupancy & utilization in the modern workspace, which can reach up to 95% recognition rate. With the ability to sense from up to more than 78 m², few sensors are needed to cover the same area, decreasing the deployment costs for users. Only counter values are transmitted over the LoRaWAN® network, which can prevent privacy concerns. Based on standard LoRaWAN® protocol, VS121 can work with Milesight LoRaWAN® gateway and mainstream LoRaWAN® network servers. With easy installation, the VS121 sensor has great use in shops, malls, offices, exhibitions, etc. Milesight VS121 sensors are equipped with Wi-Fi for easy configuration without any configuration tools.

Features:

  • The recognition rate is up to 95% based on advanced AI identification and analysis technology and
    wide detection range
  • Support up to 12 mapped regions for detection
  • No image data is collected, free from privacy concerns
  • Equipped with Wi-Fi for web GUI configuration
  • Function well with standard LoRaWAN® gateways and network servers

Applications

  • Determine the number of people in specific areas
  • Flow detection in shops and malls
  • Occupancy detection in offices

Download

More Information

Specifications
LoRaWAN Protocol LoRaWAN® v1.0.2/v1.0.3/v1.1
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137 dBm @300bps
Mode OTAA/ABP Class C
People Counting Field of View 190 ° Horizontal, 112 ° Vertical
Detection Range 5 m radius or 78 m² (At the height of 3 m)
Detection Accuracy >95%
Advanced Custom Setting Up to 16 mapped regions for detection
Interface Wi-Fi IEEE 802.11b/g/n, 2.4 GHz, only support configuration
Button 1 × Reset Button, 1 × Wi-Fi Button
LED Indicators 1 × Wi-Fi
Power Input 1 × Type-C
Physical Characteristics Power Supply 5V / 1.5A by Type-C Port
Operating Temperature -5°C ~ +55°C
Storage Temperature -20°C ~ +60°C
Relative Humidity 0 ~ 95% (Non-condensing)
Color Black/White (Optional)
Dimension 85 × 85 × 20 mm (3.35 × 3.35 × 0.79 in)
Installation Ceiling Mounting
