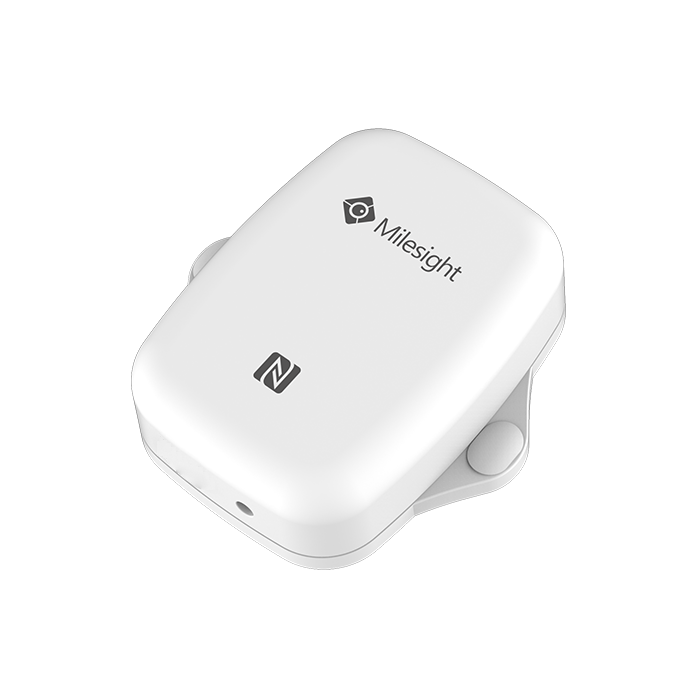

EM300 LoRaWAN Temperature & Humidity Sensor

SKU: EM300-TH-915M

LoraWan Temperature & Humidity Sensor 5 year battery

Datasheet

Description

The EM300-TH is a small environment monitoring sensor that uses LoRaWAN technology to send data while measuring temperature and humidity. With this low-power technology, the EM300-TH may operate on a 4000mAh battery for up to 5 years. The Milesight LoRaWAN gateway and Milesight IoT Cloud solution enable users to remotely and graphically control all sensor data. Offices, hospitals, factories, greenhouses, and other indoor and outdoor applications, among others, frequently employ the EM300-TH.

Key Features:

Embedded with Sensirion high-precision sensor chip
Ultra-wide-distance transmission up to a line of sight of 10km
IP67 UV-resistant and waterproof enclosure for harsh environment applications
Built-in 4000 mAh replaceable battery and works for 5 years without replacement
Equipped with NFC for easy configuration
Compliant with standard LoRaWAN gateways and network servers
Quick and easy management with Milesight IoT Cloud solution

Download

Datasheet

User Manual

More Information

Brand

Milesight IoT

Specifications

LoRaWAN	Frequency	CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
	Tx Power	20dBm (915) / 16dBm (868) / 17dBm (470)
	Sensitivity	-137dBm @300bps
	Mode	OTAA/ABP Class A
Temperature Measurement	Range	-30°C to + 70°C
	Accuracy	0°C to + 70°C (±0.3°C), -30°C to 0°C (±0.6°C)
	Resolution	0.1°C
Humidity Measurement	Range	0% to 100% RH
	Accuracy	10% to 90% RH (±3%), below 10% and above 90% RH(±5%)
	Resolution	0.5% RH
Physical Characteristics	Power Supply	ER18505 Li-SOCl2 4000 mAh battery (8000 mAh optional)
	Battery Life	≧ 5 years ( for 1 battery)
	Operating Temperature	-30°C to 70°C
	Ingress Protection	IP67
	Dimension	88 × 87 × 27 mm
	Mounting	Wall (screws or 3M adhesives)
