EM300-SLD LoRaWAN Spot Leak Detection Sensor

Milesight IoT
SKU: EM300-SLD

EM300-SLD LoRaWAN Spot Leak Detection Sensor IP67

Description

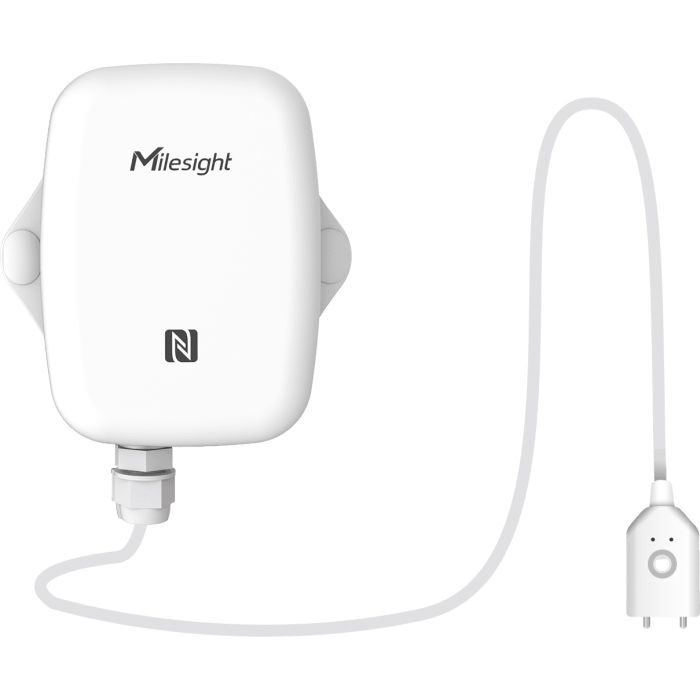

EM300-SLD is a compact spot leakage detection sensor for detecting the presence of water (or other liquids) and transmitting alarms using LoRaWAN® technology. With this low power consumption technology, EM300-SLD can work up to 5 years with a 4000 mAh battery. Combining with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually and receive alarms via mobile APP. EM300-SLD also integrates temperature and humidity sensors, which has great use for applications such as pipe leakage monitoring, basement flooding, pump failure, etc.

Features

  • Detect the presence of liquids by a small water probe and based on the conductive principle
  • Embedded with temperature and humidity sensors for environment monitoring
  • Ultra-wide-distance transmission up to the line of sight of 10km
  • IP67 UV-resistant and waterproof enclosure for harsh environment applications
  • Built-in 4000 mAh replaceable battery and works for 5 years without replacement
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

Download

More Information

Brand Milesight IoT
Specifications
LoRaWAN Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 17dBm (470) / 16dBm (868) / 20dBm (915)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Leak Detection Type EM300-SLD: probe, spot detection
EM300-ZLD: rope, zone detection
Cable Length EM300-SLD: 1.5 m
EM300-ZLD: 3 m
(Optional cable lengths of hundred meters available)
Temperature Measuring Range -30°C to+70°C
Accuracy 0~70°C: ±0.3°C
-30~0°C: ±0.6°C
Resolution 0.1°C
Humidity Measuring Range 0%~100% RH
Accuracy ±3% (10~90%RH)
±5% (Other ranges)
Resolution 0.10%
Physical Characteristics Power Supply ER18505 Li-SOCl2 4000 mAh (8000 mAh optional)
Battery Life ≧ 5 years ( for 1 battery)
Operating Temperature -30°C to 70°C
Ingress Protection IP67
Dimension 88 × 87 × 27 mm
Mounting Wall (screws or 3M adhesives)
