ATC3750-6C NVIDIA Jetson AGX Orin Computer

SKU: ATC3750-6C

NVIDIA Jetson AGX Orin Solution Performance Edge AI Computing for Rail

Key Features:

Built-in NVIDIA Jetson AGX Orin SOM, up to 200/275 TOPS (INT8) performance
Designed with rugged, compact and hybrid thermal solutions
6-port GbE PoE+ (x-coded) for IP CAM/LiDAR sensors, optional 1-port 10GbE (x-coded)
HEVC/H.265 hardware DECODE@ 6 x 4K30 performance
Wide range operating temperature of -30°C~70°C
Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
24V DC-IN for rail, ignition control & OCP/OVP
- NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 6.1
Military standard of MIL-STD-810H for anti-vibration/shock
CE/FCC, UKCA, EN50155 (EN55011, EN50121-3-2, EN61373, OT4) Certified

Datasheet

Description

AI is now a crucial part of automated driving systems. ATC 3750 can offer up to 200/275 TOPS workload on artificial intelligence (AI) processing/inference for applications like ADAS, machine learning (ML), ITS, and factory automation thanks to built-in high-performance NVIDIA Jetson AGX Orin SOM.

The user can add an extractor fan kit to function the hybrid heat dissipation, which can switch on or off the fan depending on the working temperature and the corresponding processor's TDP (15W–60W), to run the workload up to 200/275 TOPS in harsh environments.

The ATC 3750 is a tough, small in-vehicle AI-powered computer that includes 9–36VDC with IGN control, 6 PoE+ for IP CAM/LiDAR sensor access, and a wealth of peripheral connections, including USB 3.2, isolation CANBus, RS232, Console, DI/DO, OTG, and HDMI.

ATC 3750 can improve data transmitting with CSP for potential AI model re-training, sophisticated for ADAS/ANPR/AI-aided ITS/Construction, etc. implementation, with the installation of 5G NR, and Wi-Fi 5/6 modules. The ATC 3750 is designed for use in harsh environments and has a broad operating temperature range of - 30 to 70 °C. It also complies with MIL-STD-810H for anti-vibration and shock. ATC 3750 is approved by CE/FCC class A, UKCA, and Emark for the rule. (E13).

Key Features:

Built-in NVIDIA Jetson AGX Orin SOM, up to 200/275 TOPS (INT8) performance
Designed with rugged, compact and the hybrid thermal solutions
6-port GbE PoE+ (x-coded) for IP CAM/LiDAR sensors, optional 1-port 10GbE (x-coded)
HEVC/H.265 hardware DECODE@ 6 x 4K30 performance
Wide range operating temperature of -30°C~70°C
Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
24V DC-IN for rail, ignition control & OCP/OVP
NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 6.1
Military standard of MIL-STD-810H for anti-vibration/shock
CE/FCC, UKCA, EN50155 (EN55011, EN50121-3-2, EN61373, OT4) Certified

Download

Datasheet

User Manual

* You have to Login or Register to download this file

More Information

Brand

Nexcom

Specifications

Category	Specification
Model	NVIDIA® Jetson AGX Orin™ SOM
Versions	Jetson AGX Orin™ 32GB • CPU: 8-core Arm® Cortex®-A78AE v8.2 64-bit, 2MB L2 + 4MB L3 • GPU: 1792-core NVIDIA® Ampere architecture with 56 Tensor Cores • Memory: 32GB 256-bit LPDDR5, 204.8GB/s • AI Performance: 200 INT8 Sparse TOPS • 2 × NVDLA v2.0 engines @ 1.4GHz (46 INT8 Sparse TOPS each) • Video Encode: 1 × 4K60 / 3 × 4K30 / 6 × 1080p60 / 12 × 1080p30 (H.265) • Video Decode: 1 × 8K30 / 2 × 4K60 / 4 × 4K30 / 9 × 1080p60 / 18 × 1080p30 (H.265) Jetson AGX Orin™ 64GB • CPU: 12-core Arm® Cortex®-A78AE v8.2 64-bit, 3MB L2 + 6MB L3 • GPU: 2048-core NVIDIA® Ampere architecture with 64 Tensor Cores • Memory: 64GB 256-bit LPDDR5, 204.8GB/s • AI Performance: 275 INT8 Sparse TOPS • 2 × NVDLA v2.0 engines @ 1.6GHz (52.5 INT8 Sparse TOPS each) • Video Encode: 2 × 4K60 / 4 × 4K30 / 8 × 1080p60 / 16 × 1080p30 (H.265) • Video Decode: 1 × 8K30 / 3 × 4K60 / 7 × 4K30 / 11 × 1080p60 / 22 × 1080p30 (H.265) OpenGL 4.6+, OpenGL ES 3.2, CUDA® 10.2+, Vulkan 1.2+
Software	NVIDIA® JetPack 6.1
Storage	64GB eMMC 5.1 flash @ 200MHz (HS400/HS533) 1 × SD card (SDXC-I / UHS-I, SD3.0) 1 × M.2 2280 Key M (PCIe 4.0 ×4) NVMe SSD
Expansion	1 × Full-size Mini PCIe (PCIe 4.0, USB 2.0) 1 × M.2 Key B 3042/3052 (USB 3.2/2.0), 2 × nano-SIM 1 × M.2 Key E 3030 (PCIe 4.0, USB 2.0) for Wi-Fi 5/6
Display	1 × HDMI 2.0A/B, up to 3840 × 2160 @ 60Hz
G-Sensor	3D accelerometer and 3D gyroscope (ST LSM6DSLTR)
PoE+ Networking	6 × GbE RJ45 ports with PoE+ • 9K Jumbo Frame support • IEEE 802.3af/at, total 80W • IEEE 1588 supported • PSE on/off & Watt monitoring • GIGA LAN switch: KSZ9477STXI
USB	2 × USB 3.2 Gen 2 (Type-A host, 5V@900mA each, 10Gbps) 1 × Micro USB OTG
Serial Ports	2 × RS-232 (Tx, Rx, RTS, CTS) 1 × Console (Tx, Rx) ±9V signal level, up to 115.2kb/s
DI/DO	4-bit Input: 9–36VDC source or 0–33V external pull-high 4-bit Output: 9–36VDC source (35mA@24V) or 5–27V external (220mA each, 500mA max) Selectable by software (default: source type)
CAN Bus	2 × CAN FD (CAN 2.0A/B compatible) IEC 61000-4-2 ESD ±8kV/15kV (contact/air) Up to 5Mb/s, 2.5kV isolation
Optional 10GbE	1 × RJ45 10GbE (optional) Ethernet PHY: Marvell AQR113C-BO-I 10G/5G/2.5G/1G/100M/10M Base-T support IEEE 802.3az compliant, 9K Jumbo Frame, IEEE 1588 supported
GNSS	u-blox NEO-M9N GNSS module (GPS/GLONASS/QZSS/Galileo/Beidou) Optional Dead Reckoning (NEO-M9V / M8L)
Power Supply	Nominal: 9–36VDC Cranking Voltage: 6–9V (≤20s) OCP & UVP protection (shutdown >37V) Ignition on/off control & programmable delay timer Optional remote power on/off
Front I/O Ports	1 × ATX Power button 1 × Reset button 12 × LED Indicators 2 × USB 3.2 Type-A 1 × Console (DB9) 2 × CAN (DB9) 1 × COM1 (DB9, RS-232) 2 × nano-SIM 1 × HDMI® 1 × SD 1 × OTG

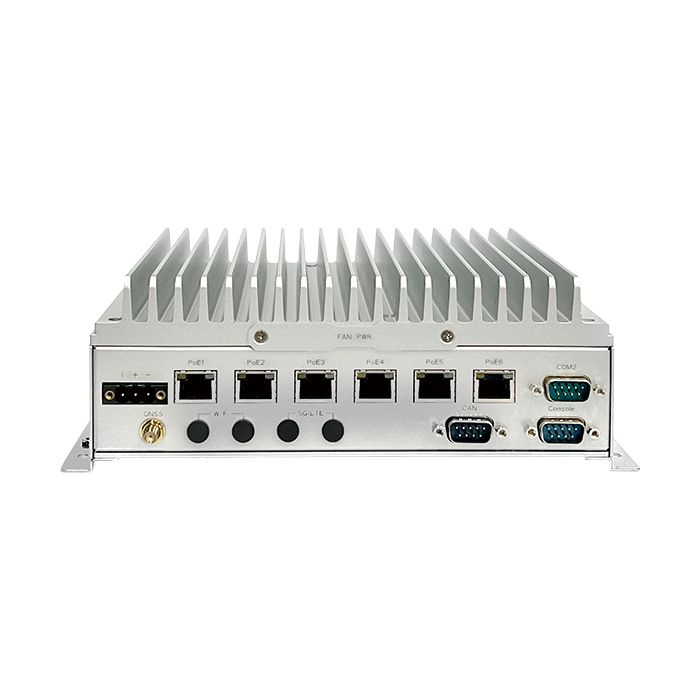

Rear I/O Ports	1 × COM2 (DB9, RS-232) 6 × GbE RJ45 (PoE+) 1 × Multi-port (DI/DO, DR signal) 1 × SMA (GNSS) 2 × RP-SMA (Wi-Fi) 4 × SMA (LTE/5G) 9–36VDC input
Dimensions & Weight	234 × 172.8 × 80.5 mm (with mount bracket), 3.5kg 234 × 184.5 × 103.6 mm (with extractor fan kit and mount bracket), 4.2kg
Environmental	Operating: -25°C to +60°C (TDP 15–60W, fanless with 80W PoE) Storage: -40°C to +85°C Humidity: 10–95% RH (non-condensing)
Vibration & Shock	Operating: MIL-STD-810H / IEC 60068-2-64 (2.0g @ 5–500Hz) Storage: MIL-STD-810G (7.7g) Shock: 40g (trucks/semi-trailers) / 75g (crash hazard)
Certifications	CE, FCC Class A, UKCA, E13 Certified
Operating System	NEXCOM Aided Linux (NAL) with JetPack 6.1 integration NEXCOM custom functions (GNSS, 5G/NR, 6-axis sensor, MCU control) Ubuntu 22.04 (L4T 36.3, Kernel 5.15)
External Cable	DB15 multi-port adapter cable (20cm)

Ordering Information

ATC 3750-6C (P/N: 10AT0375000X0)
NVIDIA^® Jetson AGX Orin™ SOM, 32GB LPDDR5, 64GB eMMC, 6 x PoE+, 2 x USB 3.2, 2 x RS232, OTG/Console, 9~36VDC/IGN

ATC 3750-6C-64 (P/N: 10AT0375001X0)
NVIDIA^® Jetson AGX Orin™ SOM, 64GB LPDDR5, 64GB eMMC, 6 x PoE+, 2 x USB3.2, 2 x RS232, OTG/console, 9~36VDC/IGN

VTK FAN92-01 (P/N: 10VK00FAN01X0)
Fan kit for ATC 3750, 92mm x 92mm
