PCIe M.2 SSDs MTE710T & MTE710T-I

In stock
PCIe M.2 SSDs MTE710T & MTE710T-I
Brand: Transcend



Enquire Now
Enquire about this product

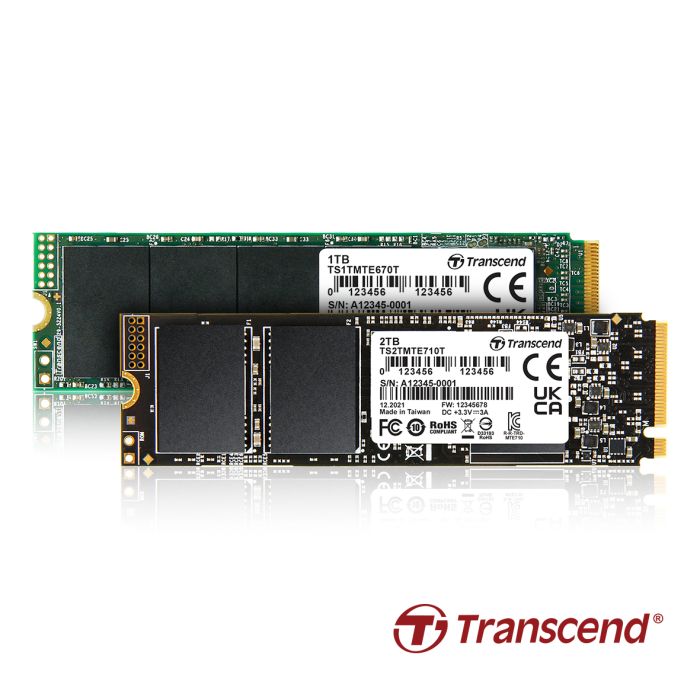

Transcend's M.2 SSD MTE710T has a PCI Express (PCIe) Gen 4 x4 interface and is NVM Express (NVMe) 1.4 compliant, allowing it to achieve previously unheard-of transfer speeds. The MTE710T uses cutting-edge 3D NAND technology, which enables the vertical stacking of 112 layers of 3D NAND flash chips. This density breakthrough considerably improves storage efficiency when compared to 3D NAND at 96 levels, and its built-in DRAM cache enables for faster access. The MTE710T, which features a 30" gold finger PCB with Corner Bond technology, is thoroughly tested in-house to ensure reliability in mission-critical applications, with a 3K Program/Erase cycle endurance rating and an extended operating temperature range of -20°C to 75°C. Transcend now offers the MTE710T-I in a wide temperature range (-40°C to 85°C) to ensure long-term operation and durability.

Key Features:

  • PCIe Gen 4 x4 interface
  • Compliant with RoHS 2.0 standards
  • Compliant with NVM Express specification 1.4
  • Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
  • DDR4 DRAM Cache embedded
  • Supports NVM command
  • SLC caching technology
  • Dynamic thermal throttling
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability

This product is listed in Industries, Partners, Digital Signage, Industrial Automation, Gaming, Mining, Medical, Transport, Transcend


Dimensions 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight 10 g (0.35 oz)
Form Factor
  • M.2
M.2 Type
  • 2280-D2-M (Double-sided)


Bus Interface
  • NVMe PCIe Gen4 x4


Flash Type
  • 112-layer 3D NAND flash
  • 256 GB/
  • 512 GB/
  • 1 TB/
  • 2 TB

Operating Environment

Operating Voltage
  • 3.3V±5%
Operating Temperature
  • Extended Temp.
    -20°C (-4°F) ~ 75°C (167°F)
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)


Power Consumption (Operation) 4.6 watt(s)
Power Consumption (IDLE) 1.6 watt(s)


Sequential Read/Write (CrystalDiskMark) Read: up to 3,800 MB/s
Write: up to 3,200 MB/s
4K Random Read/Write (IOmeter) Read: up to 500,000 IOPS
Write: up to 560,000 IOPS
Mean Time Between Failures (MTBF) 5,500,000 hour(s)
Terabytes Written (TBW) up to 1,700 TBW
Drive Writes Per Day (DWPD) 1.55 (3 yrs)
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.


  • CE/
  • FCC/
  • BSMI/
  • UKCA
