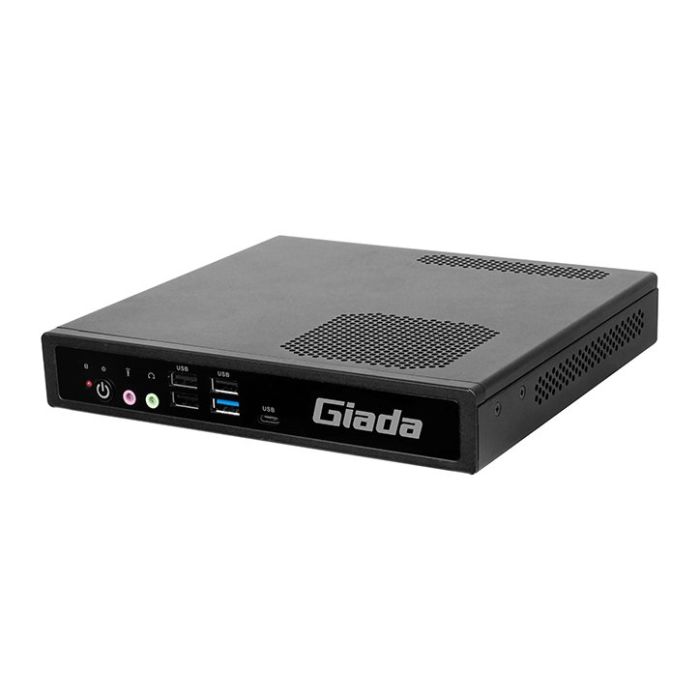

BQ611 High-end Fat-Client with Desktop CPU
View larger image
BQ611 High-end Fat-Client with Desktop CPU
BQ614
Description
Features
1 x DP, 1 x HDMI, 1 x VGA, Supporting 4K Display 2 x DDR4-3200MHz Memory, Up to 32GB 1 x M-Key M.2 (2242/2280) for SSD, 1 x 2.5" SATA 8 x USB Type-A, 1 x USB Type-C Dual LAN 1 x E-Key M.2 (2230) for Wi-Fi/BT, Supporting Wi-Fi6 (CNVi)
More Information
Brand
Giada Technology Inc.
Specifications
BQ611-E0000
Processor CPU
Intel® LGA1200 Socket 10th/11th Gen. Processor
(TDP≤65W)
BIOS AMI Source Code
Chipset H510 / B560
Memory Type DDR4-3200MHz
Socket 2 x SO-DIMM
Max Size 32GB
Graphics GPU Intel® UHD Graphics (by CPU)
Graphic Engine Direct X12, OpenGL 4.5, OpenCL 2.2
HDMI 1 x HDMI (Max.3840 x 2160@60Hz)
DP 1 x DP(Max.4096 x 2304@60Hz)
VGA 1 x VGA (Max.2048 x 1536@60Hz)
Network Controller
2 x Realtek RTL8111H Gigabit Ethernet
(Optional: 1 x Realtek RTL8111H Gigabit Ethernet)
Interface 2 x RJ45 (Optional: 1 x RJ45)
I/O USB Type-A
2 x USB3.2 Gen1, 6 x USB2.0 (H510)
2 x USB3.2 Gen2, 6 x USB2.0 (B560)
USB Type-C
1 x USB Type-C3.2 Gen1 (H510)
1 x SUB Type-C3.2 Gen2 (B560)
Serial Port 1 x RS232
Rear Audio 1 x MIC-IN, 1 x LINE-IN,
Wireless 1 x E-Key M.2(2230) for Wi-Fi/BT
TPM Infineon TPM2.0 (Optional)
Storage Socket 1 1 x M-Key (2242/2280) for SSD
Socket 2 1 x 2.5" SATA (7+15pin)
JAHC Tech Watchdog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
RTC Set Up Independently Every day, A Week as a Cycle
Remote Control Wake on LAN
Operation System Windows Windows 10 IoT Core
Linux Supported
Power Power Type DC-IN
Input Voltage 19V/6.32A
Mechanical Dimensions (W × D × H)
200mm x 185mm x 34mm
(7.46" x 5.83" x 1.02")
Fanless No
Construction Metal
Mounting(Optional) VESA Mounting Kit (JZ200)
Colour Black
Environment Operating Temperature 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity 95%@40℃ (non-condensing)
Certification Certification CE, FCC Class B, CCC
License The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
