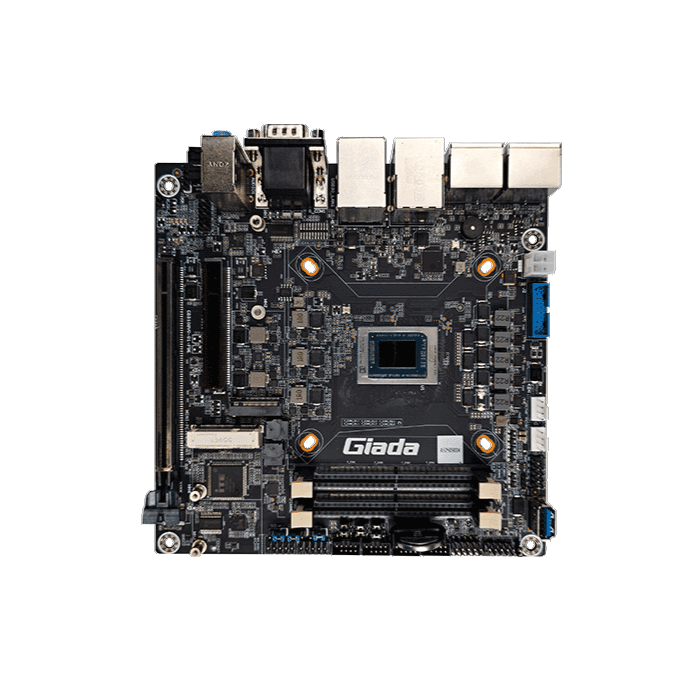

CB5-108 AMD Ryzen Embedded 8000 Mini-ITX Motherboard
SKU:
CB5-108
AMD Ryzen Embedded 8000 SoC Mini-ITX Motherboard
Key Features:
- AMD Ryzen Embedded 8000 processors
- AMD Radeon RDNA3 Graphics
- XDNA Architecture NPU 16 TOPs
- 4 x DP1.4 (Max.7680 x 4320 @60 Hz)
- 1 x PCIe 4.0 x 16 slot and 1 x PCIe 4.0 x 8 slot
- Mini-ITX form-factor 170 mm x 170 mm (6.69” x 6.69”)
Description
Product Overview
The Giada CB5-108 is a Mini-ITX embedded motherboard designed for high performance digital signage, gaming, industrial control and embedded edge applications. Powered by AMD Ryzen Embedded 8000 processors, it delivers strong CPU performance, RDNA3 graphics and integrated XDNA NPU acceleration in a compact 170 mm × 170 mm board format. With four DisplayPort outputs, dual Gigabit Ethernet, DDR5 memory support and PCIe expansion, the CB5-108 is suited to multi display systems, AI enabled workloads and embedded platforms requiring high performance in a compact footprint.
Key Features
AMD Ryzen Embedded 8000 Platform
-
Supports AMD Ryzen Embedded 8000 processors, including 8845HS, 8645HS, 8840U and 8640U
-
8-core and 6-core processor options, depending on configuration
-
TDP support up to 45 W or 28 W, depending on the processor model
-
Designed for high-performance embedded and visual applications
Integrated AI and Graphics Capability
-
AMD XDNA architecture NPU delivering up to 16 TOPS
-
AMD Radeon RDNA3 graphics with up to 12 compute units
-
Video codec engine with AV1 encode and decode support
-
Supports VP9, H.264 and H.265 decoding with 8-bit and 10-bit support
Multi Display Output
-
Four DisplayPort 1.4 outputs
-
Supports maximum resolution up to 7680 × 4320 at 60 Hz
-
Suitable for multi-screen signage and visual systems
-
Designed for high-resolution commercial display applications
Memory and Storage Support
-
Supports up to 64 GB DDR5-5600 memory via two SO-DIMM slots
-
ECC and non-ECC memory support depending on configuration
-
M.2 M-Key 2242/2280 slot with PCIe 4.0 x4 for SSD storage
-
Auto power on, watchdog timer and RTC scheduling support
Connectivity and Expansion
-
Dual Gigabit Ethernet ports using RTL8111H controllers
-
USB Type-C, USB 3.2 and USB 2.0 interfaces for peripherals and expansion
-
RS-232, RS-232/422/485, RS-232/TTL and CCTalk serial support
-
Mini PCIe slot, GPIO, I2C and PCIe 4.0 expansion slots
Embedded Motherboard Design
-
Mini-ITX form factor measuring 170 mm × 170 mm
-
ATX 4-pin 12 V power input
-
Optional TPM 2.0 support
-
Supports Windows 11 and Linux Ubuntu operating systems
Applications and Use Cases
The CB5-108 is suitable for:
-
Multi-display digital signage systems
-
Gaming and entertainment platforms
-
Industrial control and automation
-
AI-enabled edge applications
-
Embedded visualisation and multimedia systems
Dimensions/Drawings
Download
More Information
| Brand | Giada Technology Inc. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
SKU: CB5-108
CPU: AMD Ryzen Embedded 8000 SoC, 8845HS
