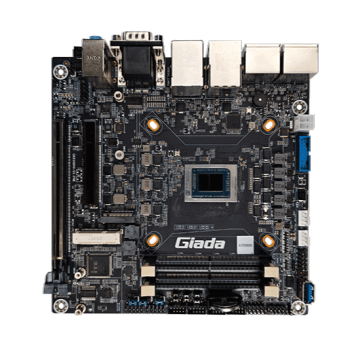

Giada CB5-108 Mini-ITX Motherboard for Gaming and Embedded Applications
The Giada CB5-108 is a high-performance Mini-ITX motherboard designed for modern gaming machines, casino systems and embedded computing applications that require reliable processing, strong graphics performance and flexible system integration.
Compact Performance for Modern Gaming Systems
Powered by AMD Ryzen™ Embedded 8000 Series processors, the Giada CB5-108 supports up to 8 cores and 16 threads, giving system builders the performance needed for responsive gameplay, real-time graphics rendering and smooth operation in demanding embedded environments.
The board is well suited to gaming and amusement systems such as slot machines, electronic roulette systems, e-tables and interactive gaming cabinets. With integrated AMD Radeon™ graphics, it provides the visual performance needed for high-resolution interfaces, animated content and multi-screen player experiences.
AMD Ryzen™ Embedded
Supports AMD Ryzen™ Embedded 8000 Series processors with up to 8 cores and 16 threads.
Up to Four Displays
Supports up to four DisplayPort outputs with resolutions up to 8K for multi-screen systems.
PCIe 4.0 Expansion
Includes PCIe 4.0 expansion options for graphics cards, I/O modules and additional peripherals.
Dual Gigabit LAN
Provides stable wired networking for connected gaming systems and embedded platforms.

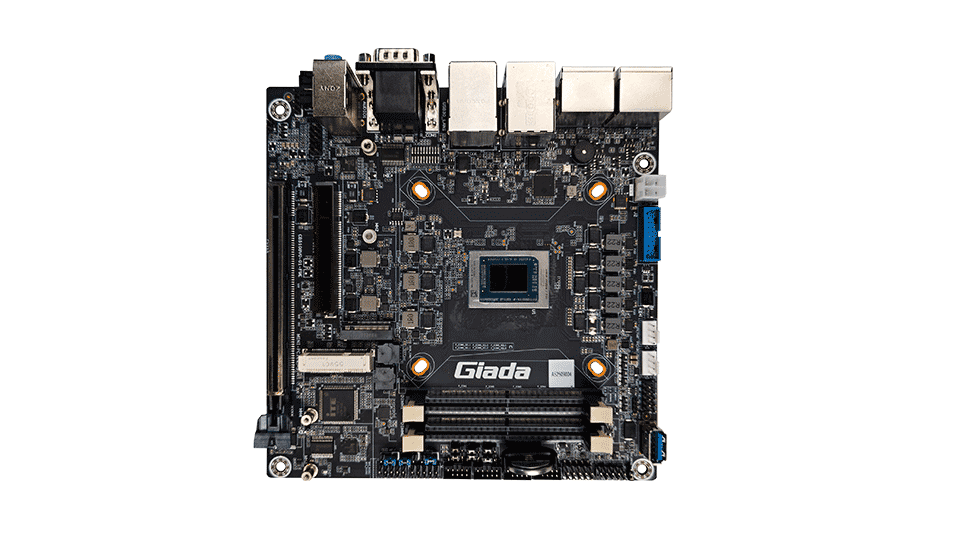

Multi-Display Visual Performance
Modern gaming cabinets often rely on multiple screens to create a more engaging user experience. The Giada CB5-108 supports up to four DisplayPort outputs with resolutions up to 8K, making it suitable for high-impact visual applications where clarity, responsiveness and display flexibility are important. This makes the board a strong choice for applications that need dynamic graphics, large-format interfaces or multiple displays within a single cabinet or embedded system.
Key Features
- AMD Ryzen™ Embedded 8000
- Up to 8 cores and 16 threads
- AMD Radeon™ graphics
- Up to four DisplayPort outputs
- Up to 8K display resolution
- PCIe 4.0 x16 and PCIe 4.0 x8 expansion
- Dual Gigabit LAN
- Dual BIOS design
- CCtalk communication support
Flexible Expansion and Easy Integration
The CB5-108 includes one PCIe 4.0 x16 slot and one PCIe 4.0 x8 slot, allowing system designers to add graphics cards, I/O modules and other peripherals. Dual Gigabit LAN supports stable network connectivity for connected gaming systems, while the Mini-ITX form factor helps simplify integration into space-limited cabinets, kiosks and embedded machines.
For gaming operators and system manufacturers, uptime and system stability are essential. The CB5-108 includes dual BIOS support and CCtalk communication, helping provide a dependable platform for high-end gaming and casino environments.
Suitable Applications
With its combination of AMD Ryzen™ Embedded performance, multi-display support, PCIe 4.0 expansion and compact Mini-ITX design, the Giada CB5-108 is a strong embedded motherboard option for modern gaming machines and performance-focused embedded systems.
Speak to Tekdis About Giada Embedded Motherboards
Contact Tekdis to discuss Giada embedded motherboard options for your next gaming, kiosk or embedded computing project.
