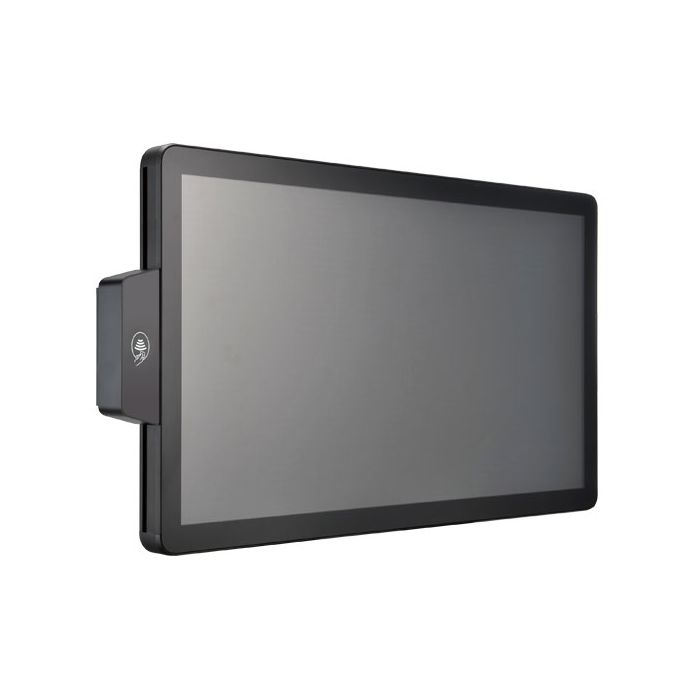

Shop D210-11KS 21.5" Celeron/Core Panel PC

SKU: D210-11KS-xxxxU

21.5" Touch Panel PC / Intel® Kabylake ULV Core i

Key Features:

Industrial-grade 21.5" Full HD TFT LCD with 40,000 backlight lifetime
True-flat touchscreen with projected capacitive multi-touch control
Front panel IP65-rated, fanless design
Support multiple mounting modules(webcam, NFC/RFID, barcode)

Datasheet

Description

D210-11KS

Slim & Sleek Design

with Powerful Performance

Versatile Peripherals

Easy install peripherals (webcam, RFID, barcode, MSR..)

Fast & Easy Assembling

Low Power Consumption & Fanless Design

Atom & Core-I fanless design in slim system

Dust & Water Resistant Design

Display & Touch

Rich I/O

Multi-Display

Wide-range Power Input

Cable Management

VESA Mounting Solution

VESA Mounting: 100 x 100 mm

Download

Datasheet

More Information

Specifications

Model	CPU	VGA	Display Port	HDMI	USB 3.0 / 2.0	Line-out / Mic-in	RS232	LAN	Wifi / BT	Power
Ordering Information
D210-11KS-3965U	Celeron 3965U	0	1	1	4 / 0	1 combo jack	2	2	Optional	DC-in 8~24V
D210-11KS-7100U	Core i3-7100U	0	1	1	4 / 0	1 combo jack	2	2	Optional	DC-in 8~24V
D210-11KS-7300U	Core i5-7300U	0	1	1	4 / 0	1 combo jack	2	2	Optional	DC-in 8~24V
D210-11KS-7600U	Core i7-7600U	0	1	1	4 / 0	1 combo jack	2	2	Optional	DC-in 8~24V

D210-11KS (D210-11KS) Specifications
MECHANICAL	MOUNTING	VESA 100 / Stand
	DIMENSIONS (W X H X D)	520 x 315 x 42 mm
	WEIGHT	10kg (22.04 lb)
LCD	DISPLAY TYPE	21.5" TFT-LCD
	MAX. RESOLUTION	1920 x 1080
	MAX. COLORS	16.7M (8 bit / color)
	LUMINANCE (cd/m2)	250
	VIEWING ANGLE (H/V)	178° / 178°
	LED BACKLIGHT LIFETIME (hrs)	40,000
TOUCH SCREEN	TYPE	P-CAP
TOUCH SCREEN	TOUCH SCREEN	True-flat 10 points
SYSTEM	PROCESSOR	7th Gen Intel® Kaby Lake-U i3-7100U(Dual Core, 3MB Cache, 2.40 GHz) / option: 7th Gen Kaby Lake celeron 3965U / i5-7300U / i7-7600U / option: 6th Gen Skylake celeron 3955U / i3-6100U / i5-6300U / i7-6600U
	CHIPSET	Intel® SoC Integrated
	SYSTEM MEMORY	DDR4 2133 / 2400MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
	ETHERNET	Intel® I219-LM Giga LAN + Intel® I211-AT Giga LAN
	I/O PORT	2 x RJ45 / 1 x Audio Jack (combo Line-out + Mic-in) / 1 x RS232 / 1 x RS232 / 422 / 485 / 1 x DisplayPort 1.2 / 1 x DC Jack / 4 x USB 3.0 / 1 x HDMI 1.4
	EXPANSION SLOT	M.2 2230 E key (PCIe, USB 2.0) / Mini PCIe Full size (PCIe / USB / SATA)
	STORAGE	1 x SATA 2.5” HDD / SSD bay
	STEREO SPEAKER	2 x 3W
	OS SUPPORT	7th Gen Kaby Lake: Windows 10 64bit, Linux (support by request) / 6th Gen Skylake: Windows 7 32 / 64bit / Windows 10 64bit
	WATCHDOG TIMER	1~255 steps by software program
POWER REQUIREMENT	POWER INPUT	DC-in 8~24V
POWER REQUIREMENT	POWER ADAPTER	AC to DC / DC19V / 3.4A / 65W adapter
ENVIRONMENTAL	OPERATING TEMPERATURE	0~ 40°C (32 ~ 104°F)
	STORAGE TEMPERATURE	-20 ~ 60°C (-4 ~ 140°F)
	STORAGE HUMIDITY	10% ~ 95% @40°C non-condensing
	VIBRATION RESISTANCE	Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD
	SHOCK RESISTANCE	Operating 50 G peak (3 ms duration)
	EMC	CE / FCC Class A
	FRONT PANEL PROTECTION	IP65 Compliant
PACKING LIST	PACKAGE	1 x Quick Installation Guide / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Cable Cover / 1 x Screws kit / 2 x Antenna
