DF68 Ultra-Thin Media Player

End of Life
In stock
SKU:
DF68
Brand: Giada Technology Inc.

REPLACED BY DF610

This product is now end of life. There might still be stock available; get in touch with us for more details or suggestions for appropriate replacements.


Downloads:

Enquire Now
Enquire about this product

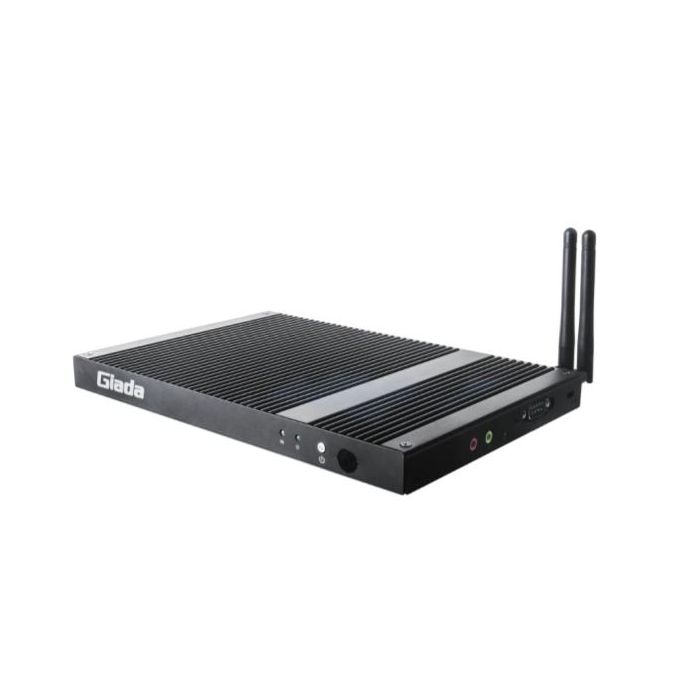

The Giada DF68 is a 20mm slimline digital signage player driven by Intel Whiskey Lake-U processors. The extensive I/O includes 1x COM, 5x USB, and 2x RJ45 ports, as well as 2 x SO-DIMM DDR4 slots for up to 32GB RAM.

Key Features:

  • Intel Whiskey Lake-U processors
  • 2 x SO-DIMM DDR4, up to 32GB
  • 1 x DP, 2 x HDMI, Supporting 4K display
  • 1 x MiniPCIe for MSATA or 3G/4g
  • 5 x USB3.1, 2 x RJ45, 1 x COM
  • 1 x M.2 (2230) for WiFi, 1 x SIM Slot
  • 20mm Ultra-thin design

This product is listed in Digital Signage, Media Players
CPU Intel Core i3-8145U/i5-8265U
Chipset  SOC
BIOS AMI Source Code
Type  DDR4-2400MHz
Socket  2 x SO-DIMM
Max Size  32GB
GPU Intel HD Graphics
Graphic Engine Direct X11.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES
Display Interface 2 x HDMI 2.0 (Max. 4096 x 2304@60Hz), 1 x DP (Max.4096 x 2304@60Hz)
Controller   Realtek RTL8211E Gigabit Ethernet
Interface 2 x RJ45
USB 5 x USB 3.1
Serial Port 1 x RS232
Audio 1 x MIC-IN, 1 x AUDIO-OUT
Mini-PCIe 1 x Mini-PCIe for MSATA/3G/4G
M.2 1 x M.2(2242/2280)PCIe for SSD, 1 x M.2(2230) for WiFi
SIM 1 x SIM Slot
M.2 1 x M.2(2242/2280) for SSD
WatchDog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
RTC Set Up Independently Every day, A Week as a Cycle
Wake On LAN Remote wakeup in the same LAN
Windows Windows 10 (64bit)
Linux Ubuntu 18.4
Dimensions 240mm x 158mm x 20mm ( 9.45″ x 6.22″ x 0.79″)
Mounting (Optional) Desk/Wall Mounting and VESA Mouting Kit (JZ300)
Power type DC-IN
Power Adapter 19V/3.42A
Operating Temperature 0°C ~ 45°C (32°F ~ 113°F) at 0.7m/s Air Flow
Relative Humidity 95% @ 40℃ (non-condensing)
Certification CE, FCC
