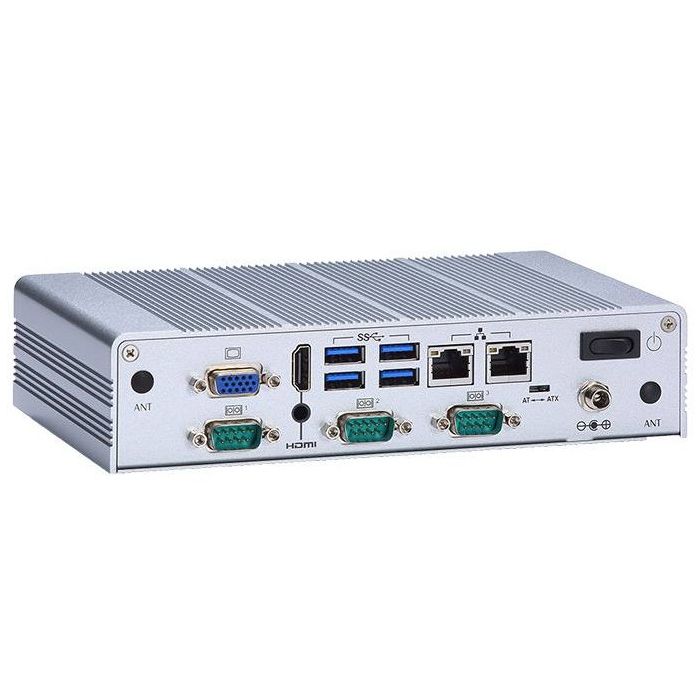

eBOX625-312-FL Fanless Embedded System

The eBOX625-312-FL is powered by the Intel® Celeron® processor N3350 or Intel® Pentium® processor quad-core N4200. It has one 204-pin DDR3L-1866 SO-DIMM socket for up to 8GB of memory. With wide operating temperatures and rich I/O interfaces, the rugged embedded box computer is well-suited for the Industrial Internet of Things (IIoT), retail equipment, factory automation, and many more. Axiomtek's eBOX625-312-FL offers great customer value with a combination of rich features, good computing performance, flexible connectivity options, and effective pricing. It is designed with anti-vibration of up to 3Grms and a wide operating temperature range with non-turbo mode from -20°C to +65°C (-4°F to +149°F). Furthermore, this low-power embedded system adopts an IP40-rated rugged aluminum extrusion and steel case, allowing it to withstand operations in harsh and hazardous environments.

To satisfy a variety of embedded application needs, the eBOX625-312-FL comes with multiple I/O connectivity including two RS-232/422/485 ports, one RS-232 port, three USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one audio, one VGA, and one lockable HDMI with a resolution of 4K ultra HD. Moreover, the fanless embedded box PC supports two full-size PCI Express Mini Card slots for WLAN/WWAN/mSATA modules and one SIM card socket. The Intel® Atom-based system also includes one 2.5" SATA HDD and one mSATA for extensive storage needs. Additionally, it supports a user-friendly front-access AT/ATX switch, allowing users to make adjustments with a single click.
