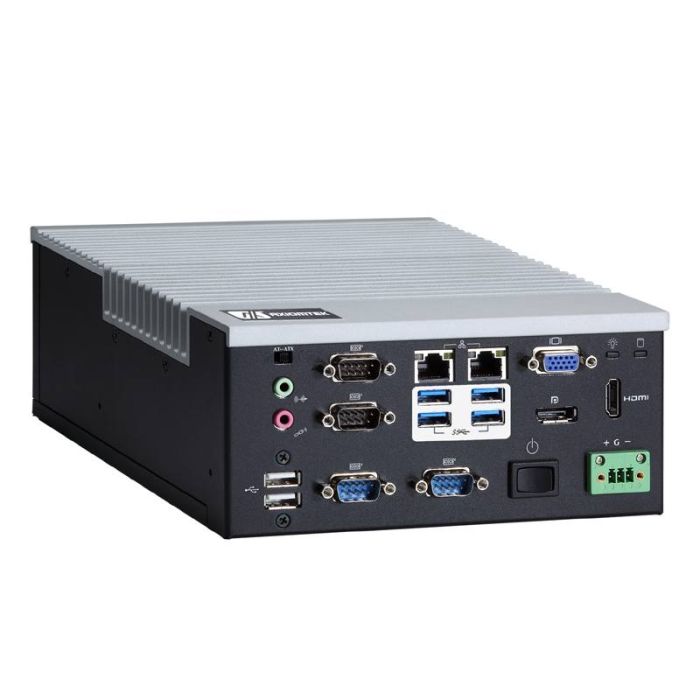

eBOX640-500-FL - 7th gen i series LGA1151 CPU
Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® H110, HDMI, DisplayPort, VGA, 6 USB, 4 COM, PCI Express Mini Card Slot and 10 to 30 VDC
Please fill in your details below, we will get back to you as soon as possible
Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® H110, HDMI, DisplayPort, VGA, 6 USB, 4 COM, PCI Express Mini Card Slot and 10 to 30 VDC
● LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Kaby Lake/Skylake)
● Supports 4 COM, 6 USB and 2 GbE LANs
● Two 2.5" SATA drive bay
● PCI Express Mini Card slot and SIM slot
● Front I/O connectivity design
● 10 to 30 VDC wide range power input
Standard Color |
Silver-black |
Construction |
Aluminum extrusion and heavy-duty steel, IP40 |
CPU |
7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35W) |
System Memory |
2 x 288-pin DDR4-2133 DIMM, up to 32GB |
Chipset |
Intel® H110 |
BIOS |
AMI |
System I/O Outlet |
1 x RS-232/422/485 3 x RS-232 2 x 10/100/1000Mbps Ethernet (Intel® i219-LM, i211-AT) 2 x USB 2.0 4 x USB 3.0 1 x Audio (Mic-in/Line-out) 1 x DisplayPort 1 x HDMI 1 x VGA 1 x Phoenix type VDC power input connector 1 x AT/ATX quick switch 2 x SMA-type antenna connector 1 x ATX power switch |
Watchdog Timer |
255 levels, 1 to 255 sec. |
Storage |
2 x 2.5” SATA HDD drive bay (max. up 15 mm height) 1 x mSATA (enabled in BIOS setting) |
Expansion Interface |
1x Full-size PCI Express Mini Card slot with mSATA supported (PCI Express + USB signal) 1 x SIM slot |
TPM |
N/A |
System Indicator |
1 x green for system power 1 x orange LED for HDD active |
Power Input |
10 to 30 VDC |
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) (with W.T. DRAM/ SSD for Skylake) -10°C to +50°C (+14°F to +122°F) (with W.T. DRAM/ SSD for Kaby Lake) |
Humidity |
10% to 90%, non-condensing |
Vibration Endurance |
2 Grms with SSD (5 to 500 Hz, X, Y, Z directions) |
Dimensions |
182 mm (7.16") (W) x 235.7mm (9.27") (D) x 82 mm (3.23") (H) |
Weight |
(net/gross) 3 kg (6.61 lb)/3.6 kg (7.94 lb) |
Certifications |
CE |
EOS support |
Win 10 IoT, WE8S Linux |
|
|
