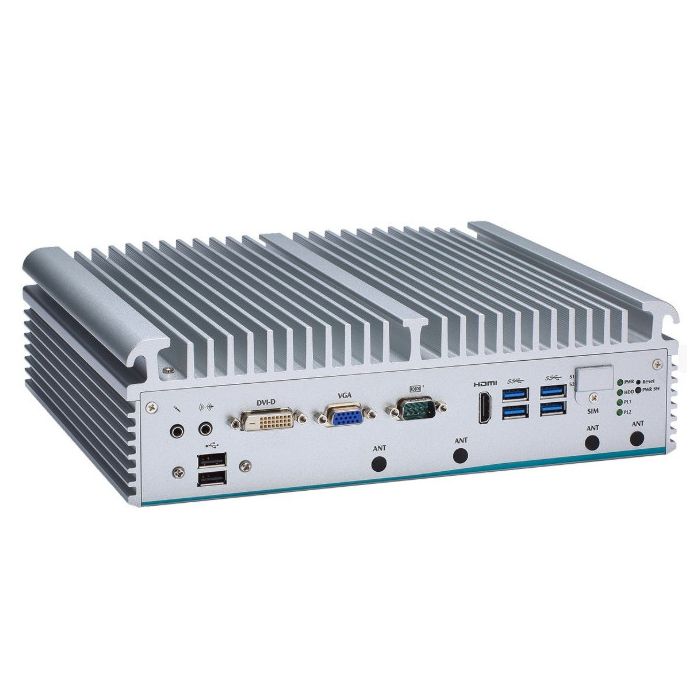

eBOX671-517-FL Fanless Embedded System

In stock
SKU:
eBOX671-517-FL-DC
Brand: Axiomtek

Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel Core i7/i5/i3 & Celeron Processor, Intel Q170, HDMI, DVI-D, VGA, 8-CH PoE, 6 USB and 24 VDC

Key Features:

  • 7th/6th gen Intel Core i7/i5/i3 & Celeron processors (35W/65W) and Intel Q170
  • 8-CH PoE onboard
  • 2 front-access SIM slots
  • Supports 6-in/2-out isolated DIO
  • -40°C to +70°C extended operating temperature
  • Optional ignition feature supported

Enquire Now
Enquire about this product:

The eBOX671-517-FL supports 8-port Gigabit PoE and can work under harsh temperatures. Its eight Gigabit PoE ports allow multiple cabling to cameras and any PoE power device; and, the eBOX671-517-FL is specifically designed for security surveillance, optical inspection, and edge computing applications. This rugged NVR embedded box PC is powered by the 7th/6th generation Intel® Core™ (Kaby Lake/Skylake) or Intel® Celeron® processors with a 35W/65W TDP and comes with Intel® Q170 chipset.  The eBOX671-517-FL comes with great expansion possibilities, including a flexible I/O module slot with a wide selection of PCIe Mini modules and four PCI Express Mini Card slots. It also has two front-accessible SIM slots and four SMA-type antenna connectors. For storage, this high-performance fanless embedded system has two SATA HDD drive bays with a height of up to 15 mm and one optional mSATA for RAID 0 and 1. Moreover, the embedded device supports two non-ECC 260-pin DDR4 SO-DIMM slots for up to 32GB of system memory.


This product is listed in Axiomtek, Industrial Computing, Embedded Computers

Standard Color

Silver

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU

LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W)

System Memory

2 x 260-pin DDR4 non-ECC SO-DIMM, up to 32GB

Chipset

Intel® Q170

BIOS

AMI UEFI BIOS

System I/O Outlet

2 x RS-232/422/485

1 x HDMI 1.4b

1 x VGA

1 x DVI-D 1 x Audio (Line-out & MIC-in)

8 x Gigabit PoE (IEEE 802.3af/802.3at) port (Intel® i211-AT, max. up to 90W)

4 x USB 3.0

2 x USB 2.0

4 x SMA-type antenna connector

1 x Phoenix type VDC power input connector

1 x 6-in/2-out isolated DIO

1 x Power switch

1 x Reset switch

1 x Flexible I/O window (default: 2 x DB9 half cut bracket)

Watchdog Timer

255 levels, 1 to 255 sec.

Storage

2 x SATA HDD drive bay (max. up 15 mm height)

1 x mSATA (enabled in BIOS setting)

Expansion Interface

2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

1 x Half-size PCI Express Mini Card slot (mSATA + USB + PCI Express signal)

1 x Half-size USB Mini Card slot

2 x External accessible SIM slot

TPM

N/A

System Indicator

1 x green LED for system power-on

1 x yellow LED for HDD active

2 x Programmable green LED

Power Input

24 VDC (ACC is disabled by default)

Operating Temperature

35W Tj=100°C CPU: -40°C to +70°C (-40°F to +158°F) with W.T. SSD 65W Tj=100°C CPU: -40°C to +55°C (-40°F to +131°F) with W.T. SSD 35W Tj=80°C CPU: -40°C to +50°C (-40°F to +122°F) with W.T. SSD

Humidity

10% to 90%, non-condensing

Shock

IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)

Vibration Endurance

IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)

Dimensions

280 mm (11.2") (W) x 210 mm (8.26") (D) x 79.6 mm (3.13") (H)

Weight

(net/gross) 4.31 kg (9.5 lb)/5.1 kg (11.24 lb)

Certifications

CE, FCC Class A

EOS Support

Win 10 IoT, Linux, AXView 2.0
