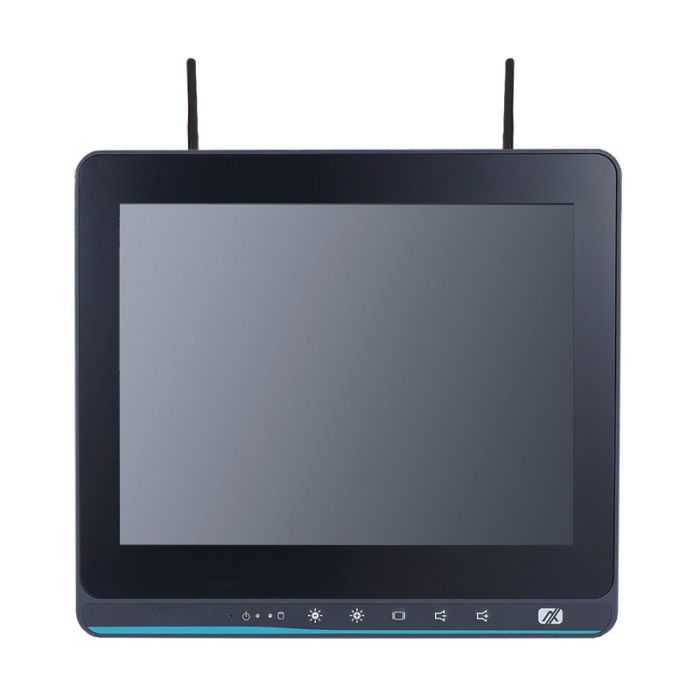

Shop GOT110-316 10.4" Fanless Touch Panel PC

SKU: GOT110-316-R-J

10.4" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor Qaud Cores N4200

Datasheet

Description

10.4" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor Quad Cores N4200

● 10.4" XGA TFT LCD display with LED backlight

● Fanless design with Intel® Celeron® processor N3350 or Intel® Pentium® processor N4200

● 2 GbE LANs, 4 USB and 2 COM

● IP65-rated front bezel and IPX1 rated back cover

● Peripheral support including MSR, RFID, Wi-Fi, barcode scanner

● External AT/ATX mode selection switch

● Easy maintenance design for storage and memory

● Supports panel mount, wall mount, VESA arm and desktop stand

● Adjustable RS-232/422/485 setting via BIOS

● Aluminum cover for the better thermal dissipation and reliability

Product Data Sheet

User Manual

Brand

Axiomtek

Specifications

Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
LCD Panel	Display Type	10.4" XGA TFT LCD with LED backlight
	Brightness (cd/m2 )	350 nits (XGA)
	Resolution	1024 x 768
	Viewing Angel (H/V)	160°/160°
Main System	CPU	Intel® Celeron® processor N3350 2 cores (up to 2.40GHz) Intel® Pentium® processor 4 cores N4200 (up to 2.50GHz)
	System Memory	1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
	BIOS	AMI UEFI BIOS
	Storage	1 x 2.5" SATA HDD (9.5 mm height) 1 x mSATA
	Watchdog Timer	255 levels, 0 to 255 sec.
	Onboard Graphics	Integrated in Intel® GFX
I/O Connector	1 x RS-232/422/485 (default RS-232) 1 x RS-232 2 x 10/100/1000 Mbps Ethernet 4 x USB 3.0 1 x Screw type connector for power 1 x Power button (ATX) 1 x Remote power switch 1 x Line-out 1 x ATX/AT selectable switch 1 x HDMI
Expansion Interface	1 x Full-size PCI Express Mini Card slot with mSATA 1 x Full-size PCI Express Mini Card slot with SIM
Touchscreen	Projected capacitive multi-touch 5-wire flat resistive touch
Power Supply	DC version: 12/19 to 24 VDC adapter cable AC version: 100 to 240 VAC-DC, 60W power adapter
Power Consumption	24W
Dimensions	259.43 mm (10.21") (W) x 43.5 mm (1.71") (D) x 232.73 mm (9.16") (H)
Packing Dimensions	415 mm (16.34") (W) x 100 mm (3.94") (D) x 315 mm (12.4") (H)
Weight	(net/gross) 1.8 kg (3.96 lb)/3 kg (6.61 lb)
Operating Temperature	0°C to +50°C (+32°F to +122°F)
Relative Humidity	20% to 90% @ +40°C; non-condensing
Operation Vibration	2G, 5 - 500Hz, random for SSD
Certifications	CE, FCC
