Shop GOT110-316-PoE-PD 10" Fanless Panel PC

End of Life

SKU: GOT110-316-PoE-PD

10.4" XGA TFT Fanless Touch Panel Computer Celeron® N3350, POE device

Datasheet

Description

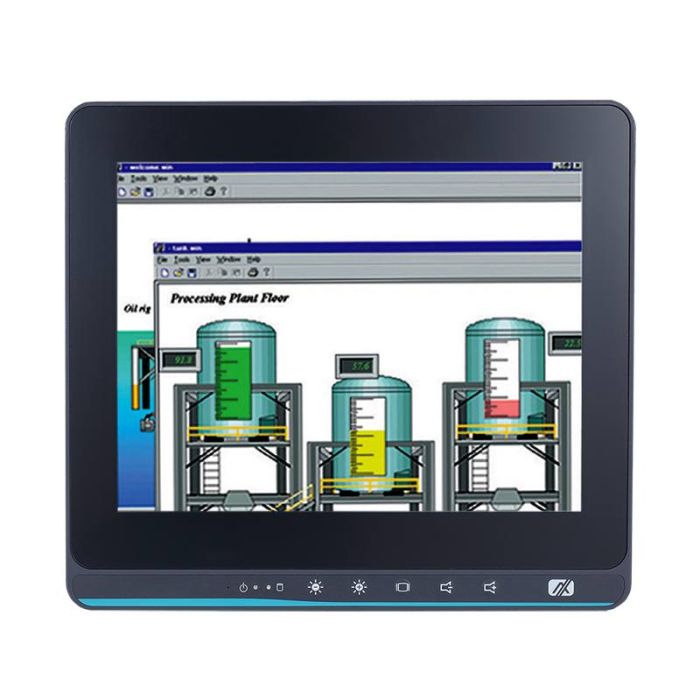

10.4" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350

● 10.4" XGA TFT LCD display with LED backlight

● Fanless design with Intel® Celeron® processor N3350

● 1 Gbe LAN, 1 PoE PD, 4 USB and 2 COM

● IP65-rated front bezel and IPX1 rated back cover

● External AT/ATX mode selection switch

● Easy maintenance design for storage and memory

● Supports panel mount, wall mount, VESA arm and desktop stand

● Adjustable RS-232/422/485 setting via BIOS

● Aluminum cover for the better thermal dissipation and reliability

Product Data Sheet

User Manual

Brand

Axiomtek

Specifications

LCD Panel	10.4" XGA TFT LCD 350 nits (XGA) 1024 x 768 pixels
CPU	Intel® Celeron® processor N3350 (turbo boost disable)
Chipset	SoC integrated
System Memory	1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
BIOS	AMI
COM	1 x RS-232/422/485 (default RS-232) 1 x RS-232
USB	4 x USB 3.0
Ethernet	1 x 10/100/1000 Mbps Ethernet 1 x PoE PD
Display	1 x HDMI
Audio	1 x Line-out
Storage	1 x 2.5" SATA HDD (9.5 mm height) or 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot with mSATA 1 x Full-size PCI Express Mini Card slot with SIM
Others	1 x Power button (ATX) 1 x Remote power switch 1 x ATX/AT selectable switch
Touchscreen	Projected capacitive multi-touch 5-wire flat resistive touch
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply	Power Device (PD): follows IEEE 802.3at (25.5W)
Power Comsumption	25.5W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F)
Relative Humidity	20% to 90% @ +40°C; non-condensing
Vibration	2G, 5 - 500Hz, random for SSD
Dimensions (W x D x H)	259.43 x 43.5 x 232.73 mm (10.21" x 1.71" x 9.16")
Weight (net/gross)	1.8 kg (3.96 lb)/3 kg (6.61 lb)
Certifications	CE, FCC
EOS	Windows® 10
Mounting	Panel mount Wall mount Stand
