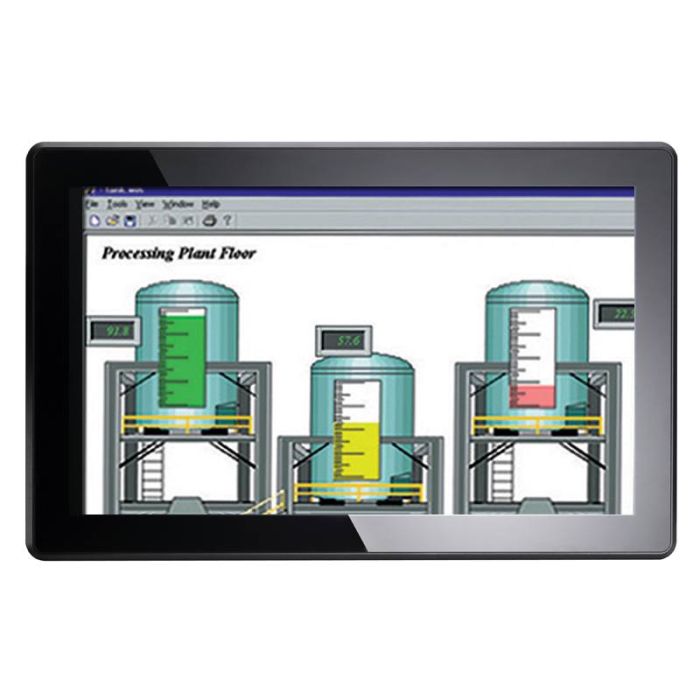

GOT3157W-834-PCT 15.6" Fanless Panel PC

In stock
SKU:
GOT3157W-834-PCT
Brand: Axiomtek

15.6" WXGA TFT Fanless Multi-touch Panel Computer with Intel® Celeron® Processor J1900 (-10°C to +50°C)


Enquire Now
Enquire about this product:

15.6" WXGA TFT Fanless Multi-touch Panel Computer with Intel® Celeron® Processor J1900 (-10°C to +50°C)

● 15.6" WXGA TFT with projected capacitive multi-touch

● Fanless design with Intel® Celeron® processor J1900 4C @ 2.0 GHz (Bay Trail)

● 2.5" SATA HDD & CFast™ or mSATA

● WLAN/3G module & antenna (optional)

● 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and 2 COM

● IP65 front bezel

● Supports panel mount and optional VESA arm/desktop stand/wall mount

● -10°C to +50°C wide operating temperature range

● Adjust RS-232/422/485 setting via BIOS




This product is listed in Industrial Automation, Axiomtek

Front Bezel

IP65 front bezel

LCD Panel

Display Type

15.6" WXGA TFT LCD



Brightness (cd/m2 )

400 nits



Resolution

1366 x 768

Main System

CPU

Intel® Bay Trail-D Celeron® processor J1900 4C @ 2.0 GHz



Chipset

SoC Intergrated



System Memory

1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB



BIOS

AMI UEFI BIOS



Storage

1 x 2.5" SATA HDD

1 x CFast™ or 1 x mSATA



Watchdog Timer

255 levels, 0 to 255 sec.



Onboard Graphics

Integrated Intel® HD Graphics

I/O Connector

2 x RS-232/422/485 (COM 1/2)

1 x switch for power on/off (ATX)

1 x audio (Line-out)

2 x USB 3.0

2 x USB 2.0

2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT)

TPM

N/A

Expansion Interface

2 x PCI Express Mini Card slot

Touchscreen

Projected Capacitive multi-touch

Power Supply

1. DC version: 9 to 36 VDC

2. AC version: 12 VDC with adapter

Power Consumption

45 W

Dimensions

396 mm (15.6") (W) x 53.9 mm (2.12") (D) x 247.1 mm (9.73") (H)

Packing Dimensions

525 mm (20.67") (W) x 470 mm (18.51") (D) x 186 mm (7.32") (H)

Weight

(net/gross) 5.0 kg (11.02 lb)/7.0 kg (15.43 lb)

Environment

Operating temperature: -10°C to +50°C (+14°F to +122°F)

Relative humidity:

20% to 90% @ +40°C; non-condensing

Operation vibration:

2G, 10 to 500Hz, random for CompactFlash™

Certificate

CE
