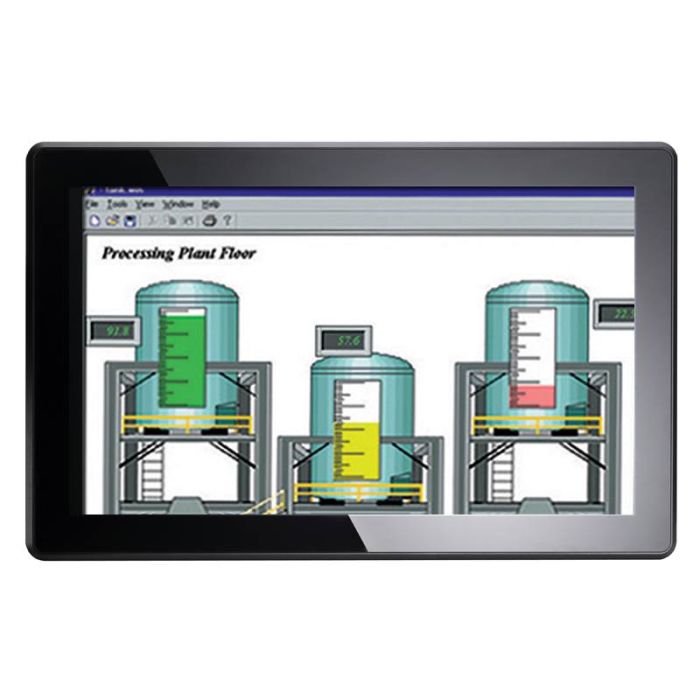

GOT3157W-881 15.6" Fanless PPC

Front Bezel

IP65 front bezel

LCD Panel

Display Type

15.6" WXGA TFT LCD

Brightness (cd/m2 )

400 nits

Resolution

1366 x 768

Main System

CPU

LGA1150 socket 4th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processors (Haswell), up to 45 W TDP

Chipset

Intel® H81

System Memory

1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB

BIOS

AMI UEFI BIOS

Storage

1 x 2.5" 7/9.5 mm SATA HDD

1 x CFast™

1 x mSATA

Watchdog Timer

255 levels, 0 to 255 sec.

Onboard Graphics

Integrated Intel® HD Graphics

I/O Connector

2 x RS-232/422/485 (COM 1/2)

1 x switch for power on/off (ATX)

1 x audio (Line-out & Mic-in))

2 x USB 3.0

2 x USB 2.0

1 x HDMI

2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT)

TPM

N/A

Expansion Interface

2 x PCI Express Mini Card slot

Touchscreen

Projected Capacitive multi-touch

Power Supply

19 VDC with adapter

Power Consumption

100 W

Dimensions

396.8 mm (15.6") (W) x 89.5 mm (3.5") (D) x 247.1 mm (9.73") (H)

Packing Dimensions

525 mm (20.67") (W) x 470 mm (18.51") (D) x 186 mm (7.32") (H)

Weight

(net/gross) 5.5 kg (12.13 lb)/7.5 kg (16.53 lb)

Environment

Operating temperature: 0°C to +40°C (+32°F to +104°F)

Relative humidity:

20% to 90% @ +40°C; non-condensing

Operation vibration:

1.0 G, 10 to 500 Hz, random for CFast™ card

Certificate

CE
