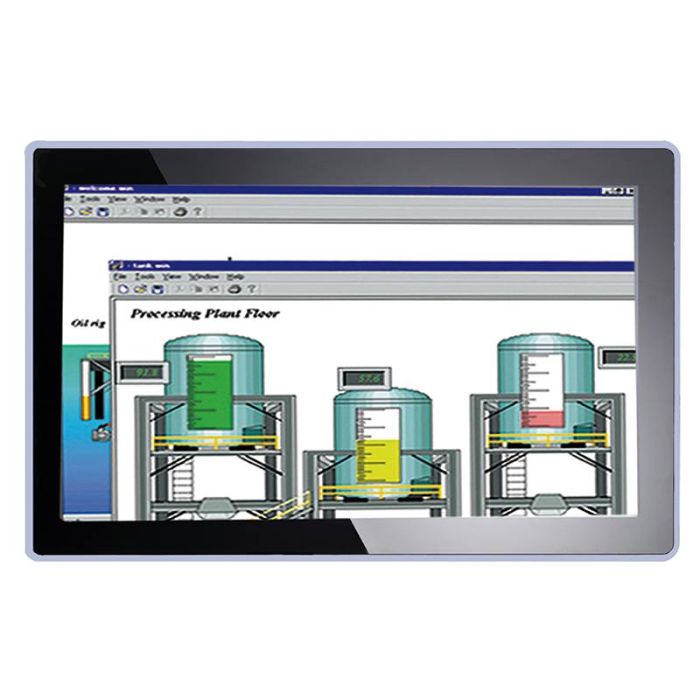

GOT3217WL-845-PCT 21.5" Fanless Panel PC

SKU: GOT3217WL-845-PCT

21.5" FHD TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710

Datasheet

Description

21.5" FHD TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710

· 21.5" FHD 10-point multi-touch projected capacitive widescreen

· Fanless design with Intel® Pentium® processor N3710

· 2.5" 7/9.5 mm SATA HDD & mSATA

· 3G, WLAN module & antennas (optional)

· 2 GbE LANs, 2 USB 3.0, 2 USB 2.0 and 2 COM

· IP65-rated aluminum front bezel

· Supports panel mount and VESA mount (VESA arm/desktop stand/wall mount optional)

· Adjustable RS-232/422/485 setting via BIOS

Product Data Sheet

User Manual

Brand

Axiomtek

Specifications

LCD Panel	21.5" FHD TFT LCD 250 nits 1920 x 1080
CPU	Intel® Pentium® processor N3710 1.6 GHz (Braswell)
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1333/1600, up to 8GB
BIOS	AMI
COM	1 x RS-232 1 x RS-232/422/485
USB	2 x USB 3.0 2 x USB 2.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i217LM & i210AT)
Display	N/A
Audio	1 x Audio (Line-out)
Storage	1 x 2.5" SATA HDD (9.5 mm height) 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card with mSATA 1 x Full-size PCI Express Mini Card with SIM slot
Others	1 x Switch for power on/off (ATX)
Touchscreen	10-point projected capacitive multi-touch
Front Bezel	IP65 front bezel
Power Supply	DC version: 24 VDC AC version: 12 VDC 60W adapter
Power Comsumption	48W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F)
Relative Humidity	20% to 90% @ +40°C; non-condensing
Vibration	1 G, 10 - 500 Hz, random for 2.5" SATA HDD
Dimensions (W x D x H)	547.6 x 58.5 x 339 mm (21.56" x 2.30" x 13.35")
Weight (net/gross)	7.6 kg (16.8 lb)/10.5 kg (23.1 lb)
Certifications	CE
EOS	Windows® 10 IoT Enterprise, Windows® 10
Mounting	Panel mount VESA arm Desktop stand Wall mount
