Shop GOT321W-502-PCT 21.5" Panel PC

End of Life

SKU: GOT321W-502-PCT

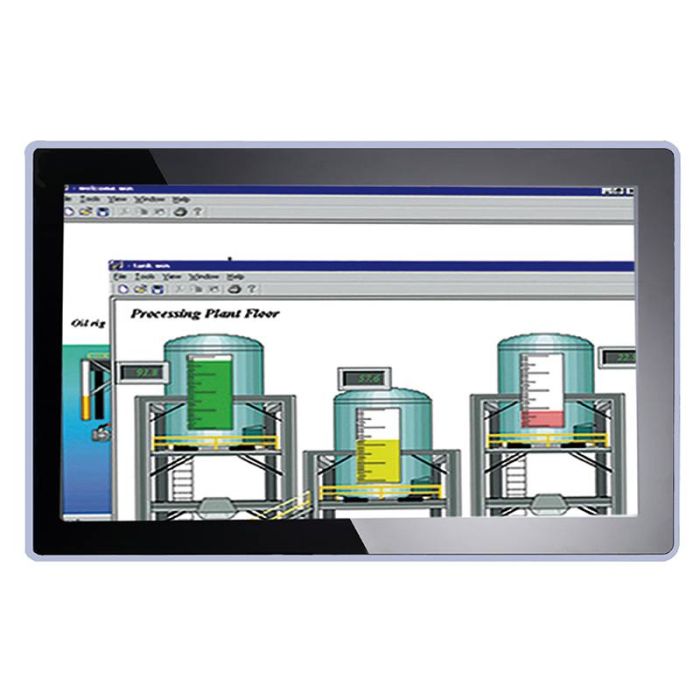

21.5" FHD TFT Multi-touch Panel Computer with 7th/6th Gen Intel® Core™ i7/i5/i3 Processor

Datasheet

Description

21.5" FHD TFT Multi-touch Panel Computer with 7th/6th Gen Intel® Core™ i7/i5/i3 Processor

· 21.5" FHD 10-point multi-touch projected capacitive widescreen

· LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor

· Intel® H110 chipset

· 4 USB 3.0 and 2 COM

· 2.5" SATA HDD and mSATA

· WLAN module & antenna (optional)

· IP65-rated front bezel

· Supports panel mount and VESA mount (VESA arm/desktop stand/wall mount optional)

· Built-in speakers and swappable hard drive design

Product Data Sheet

User Manual

Brand

Axiomtek

Specifications

LCD Panel	21.5" FHD TFT 250 nits 1920 x 1080 pixels
CPU	LGA1151 socket 7/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
Chipset	Intel® H110
System Memory	2 x 260-pin SO-DIMM DDR4-2400, up to 32GB
BIOS	AMI
COM	2 x RS-232/422/485
USB	4 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i219LM/i211AT)
Display	1 x HDMI v1.4 1 x VGA (up to 1920 x 1200 60Hz) 1 x DisplayPort v1.2 (DP++)
Audio	1 x Audio (Mic-in & Line-out)
Storage	1 x 2.5” SATA HDD (9.5 mm height)
Expansion	1 x Half-size PCI Express Mini Card slot with mPCIe 1 x Full-size PCI Express Mini Card slot with mSATA or mPCIe
Others	Speaker WLAN Module WLAN antennas
Touchscreen	10-point projected capacitive multi-touch
Front Bezel	Aluminum w/ IP65/NEMA 4 rugged protection
Power Supply	DC terminal block: +12V/+19V/+24V AC adapter: 19V, 6.32A
Power Comsumption	105W
Watchdog Timer	255 levels, 1 to 255 sec.
Operating Temperature	0°C to +45°C (+32°F to +113°F)
Relative Humidity	10% to 90% @ +40°C, non-considering
Vibration	1.0G, 5 - 500Hz, random
Dimensions (W x D x H)	547.59 x 339.05 x 75.6 mm (21.56" x 13.49" x 2.98")
Weight (net/gross)	8.4 kg (18.5 lb)/11.3 kg (24.9 lb)
Certifications	CE
EOS	Windows® 7, Windows® 8.1, Windows® 10
Mounting	Panel mount VESA arm Desktop stand Wall mount
