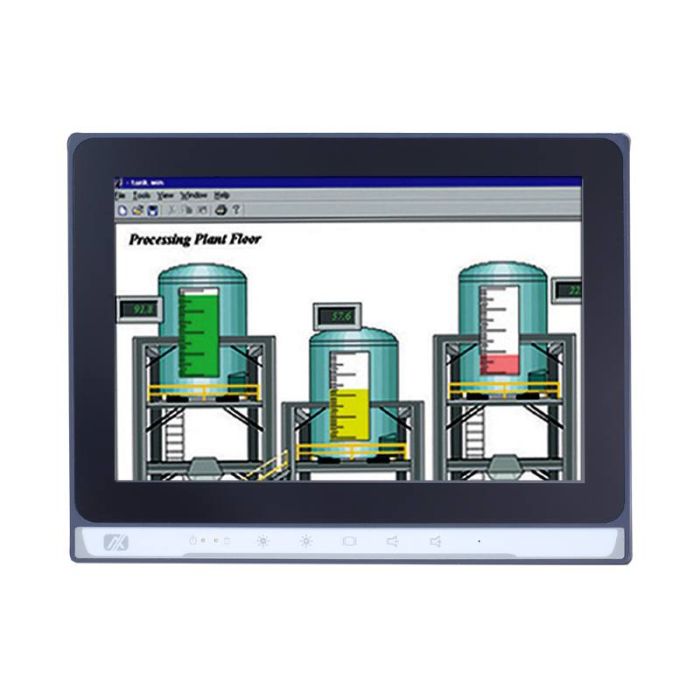

Shop GOT5103W-845 10.1" Fanless Panel PC

SKU: GOT5103W-845-PCT

10.1" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® N3060 Processor or Intel® Pentium® N3710 Processor

Datasheet

Description

10.1" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® N3060 Processor or Intel® Pentium® N3710 Processor

· 10.1" WXGA wide screen TFT LCD display with LED backlight

· Projected capacitive multi-touch

· Fanless design with Intel® Celeron® N3060 processor or Intel® Pentium® N3710 processor

· 1 mSATA and 1 half-slim SATA SSD (optional)

· 2 GbE LAN, 4 USB, 2 COM, 2W speakers and optional Mic-in

· IP65-rated front bezel and IPX1 full enclosure design

· Supports panel mount, wall mount, VESA arm and desktop stand

· External AT/ATX mode selection switch

Download

Product Data Sheet

User Manual

More Information

Brand

Axiomtek

Specifications

LCD Panel	10.1" WXGA TFT LCD withg LED backlight 350 nits 1280 x 800 pixels
CPU	Intel® Celeron® processor N3060 (up to 2.48 GHz) Intel® Pentium® processor N3710 (up to 2.56 GHz)
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
BIOS	AMI
COM	1 x RS-232 1 x RS-232/422/485
USB	2 x USB 2.0 2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT)
Display	1 x HDMI
Audio	1 x Audio (Line-out)
Storage	1 x Half-slim SATA SSD (for GOT5103W-845-PCT-J, optional) 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card with mSATA 1 x Full-size PCI Express Mini Card with SIM slot
Others	2 x Speaker WLAN antenna 1 x Switch for power On/Off 1 x AT/ATX mode selection switch
Touchscreen	Projected capacitive multi-touch
Front Bezel	IP65, plastic front bezel
Power Supply	AC version: 100 to 240 VAC-DC, 60W power adapter DC version: 24 VDC with over current protection fuse
Power Comsumption	40.32W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F) 0°C to + 45°C (+32°F to + 113°F) (GOT5103W-845 N3710)
Relative Humidity	20% to 90% @ 40°C; non-condensing
Vibration	2G, 10 - 500Hz, random for SSD
Dimensions (W x D x H)	260.8 x 38 x 194.1mm (10.27" x 1.50" x 7.65")
Weight (net/gross)	1.08 kg (2.38 lb)/2.18 kg (4.8 lb)
Certifications	CE, FCC, UL60950-1
EOS	Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES 7
Mounting	Panel mount Wall mount VESA arm Desktop stand
