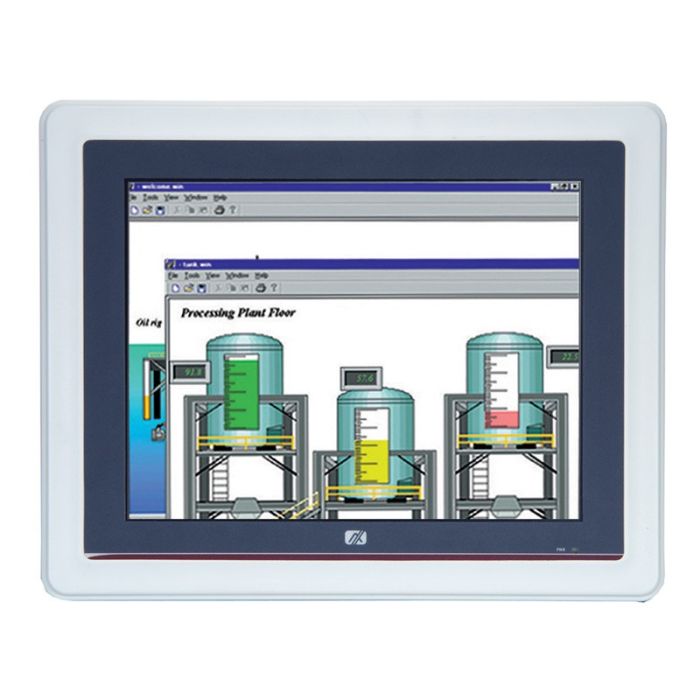

Shop GOT5120T-845 12.1" XGA Fanless Panel PC

SKU: GOT5120T-845

12.1" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

Datasheet

Description

12.1" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

· 12.1" XGA/SVGA TFT LCD display with LED backlight

· Fanless design with Intel® Celeron® processor N3060 (up to 2.48 GHz)

· 2.5" SATA HDD and mSATA with easy access design

· 2 GbE LAN, 4 USB, 2 COM and optional speakers

· IP65 front bezel design

· Supports optional panel mount/wall mount/VESA arm/desktop stand

· External AT/ATX mode selectable switch

· Supports RFID (optional)

· Adjust RS-232/422/485 setting via BIOS

Product Data Sheet

User Manual

Brand

Axiomtek

Specifications

LCD Panel	12.1" XGA/SVGA TFT LCD withg LED backlight 500 nits (XGA) 450 nits (SVGA) 1024 x 768 (XGA) 800 x 600 (SVGA)
CPU	Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
BIOS	AMI
COM	1 x RS-232 1 x RS-232/422/485 (default RS-232)
USB	2 x USB 2.0 2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT)
Display	1 x HDMI
Audio	1 x Audio (Line-out)
Storage	1 x 2.5" SATA HDD (9.5 mm) 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot with mSATA 1 x Full-size PCI Express Mini Card slot with SIM
Others	1 x 8-bit DIO port (programmable, DB9) 1 x switch for power on/off 1 x AT/ATX mode selection switch
Touchscreen	5-wire resistive touch
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply	DC version: 24 VDC over current protection fuse (optional) AC version: 100 - 240VAC-DC, 60W power adapter
Power Comsumption	34W
Watchdog Timer	255 levels, 0~255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F)
Relative Humidity	20% - 90% @ +40°C; non-condensing
Vibration	2G, 10 - 500Hz, random for SSD
Dimensions (W x D x H)	327.5 x 52.5 x 261.8 mm (12.9" x 2.07" x 10.3")
Weight (net/gross)	2.48 kg (5.46 lb)/3.84 kg (8.46 lb)
Certifications	CE, FCC, UL60950-1
EOS	Windows® 7, WES 7, Windows® 8.1, WE8S, Windows® 10
Mounting	Panel mount Wall mount VESA arm Desktop stand
