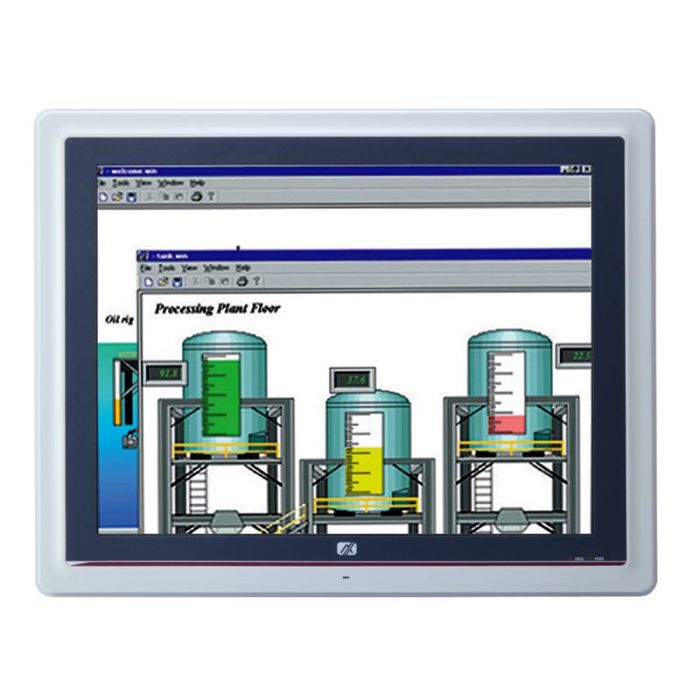

Shop GOT5152T-834 15" Fanless Touch Panel PC

SKU: GOT5152T-834

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900

Datasheet

Description

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900

· 15" XGA TFT LCD display with LED backlight

· Fanless cooling system with Intel® Celeron® processor J1900

· WLAN module and internal antenna

· 2 GbE LAN, 4 USB and 3 COM

· PCI Express Mini Card for easy expansion

· Supports panel mount/wall mount/VESA arm

· Supports RFID (optional)

· Plastic and IP65-rated front bezel

Product Data Sheet

User Manual

Brand

Axiomtek

Specifications

LCD Panel	15" XGA TFT LCD with LED backlight 420 nits 1024 x 768 pixels
CPU	Intel® Celeron® processor J1900
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS	AMI
COM	3 x RS-232/422/485 (default RS-232)
USB	2 x USB 2.0 2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i210-IT)
Display	1 x VGA
Audio	Line-out
Storage	1 x 2.5" SATA HDD (7-9.5 mm height) 1 x CFas™ or mSATA
Expansion	1 x Full-size PCI Express Mini Card slot with mSATA 1 x Full-size PCI Express Mini Card slot with SIM
Others	Built-in WLAN antenna
Touchscreen	Resistive type
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply	DC version: 9 to36 VDC with over-current protection fuse AC version: 100 to240 V AC-DC, 60W power adapter
Power Comsumption	36W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0°C to +50°C (+32°F to+122°F) (with W.T. DRAM/HDD in airflow condition) 0°C to +45°C (+32°F to+113°F) (with W.T. DRAM/HDD)
Relative Humidity	20% to 90% @ +40°C; non-condensing
Vibration	2G, 5 to 500 Hz, random for CFast™
Dimensions (W x D x H)	387.9 x 54.6 x 307.7mm (15.27" x 2.14" x 12.11")
Weight (net/gross)	3.2 kg (7.05 lb)/ 5.1 kg (11.24 lb)
Certifications	CE
EOS	Windows® 10 IoT Enterprise, Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES 7
Mounting	Panel mount Wall mount VESA arm Desktop stand
