Shop GOT5152T-845 15" XGA Panel PC

SKU: GOT5152T-845

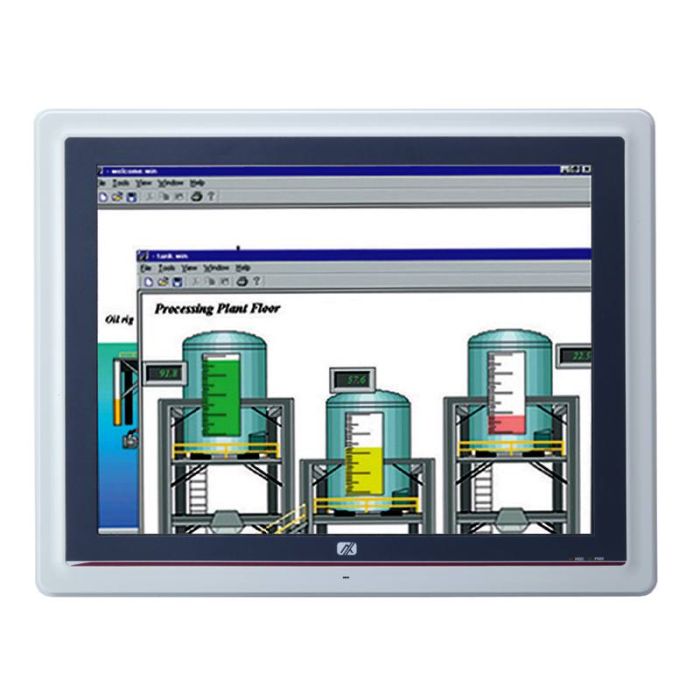

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

Datasheet

Description

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

· 15" XGA TFT LCD display with LED backlight

· Fanless cooling system with Intel® Celeron® processor N3060

· WLAN module and internal antenna

· 2 GbE LAN, 4 USB and 2 COM

· PCI Express Mini Card slot for easy expansion

· Supports optional panel mount/wall mount/desktop stand

· Supports RFID (optional)

· Plastic and IP65-rated front bezel

Product Data Sheet

User Manual

Brand

Axiomtek

Specifications

LCD Panel	15" XGA TFT LCD with LED backlight 450 nits 1024 x 768
CPU	Intel® Celeron® processor N3060 (up to 2.48 GHz)
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS	AMI
COM	1 x RS-232 1 x RS-232-422-485
USB	2 x USB 2.0 2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT)
Display	1 x HDMI
Audio	1 x Audio (Line-out)
Storage	1 x 2.5" SATA HDD (9.5 mm) 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card with mSATA supported 1 x Full-size PCI Express Mini Card with SIM slot
Others	1 x 8-bit DIO port (programmable, DB9) 1 x switch for power on/off 1 x AT/ATX mode selection switch
Touchscreen	5-wire resistive touch
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply	DC version: 24 VDC overcurrent protection fuse AC version: 100 ~ 240V AC-DC, 60W power adapter
Power Comsumption	32 W
Watchdog Timer	255 levels, 0 - 255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F)
Relative Humidity	20% - 90% @ +40°C; non-condensing
Vibration	2G, 10 - 500Hz, random for SS
Dimensions (W x D x H)	387.9 x 54.6 x 307.7 mm (15.27" x 2.14" x 12.11")
Weight (net/gross)	3.2 kg (7.05 lb)/5.1 kg (11.24 lb)
Certifications	CE, FCC, UL60950-1
EOS	WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting	Panel mount Wall mount VESA arm Desktop stand
