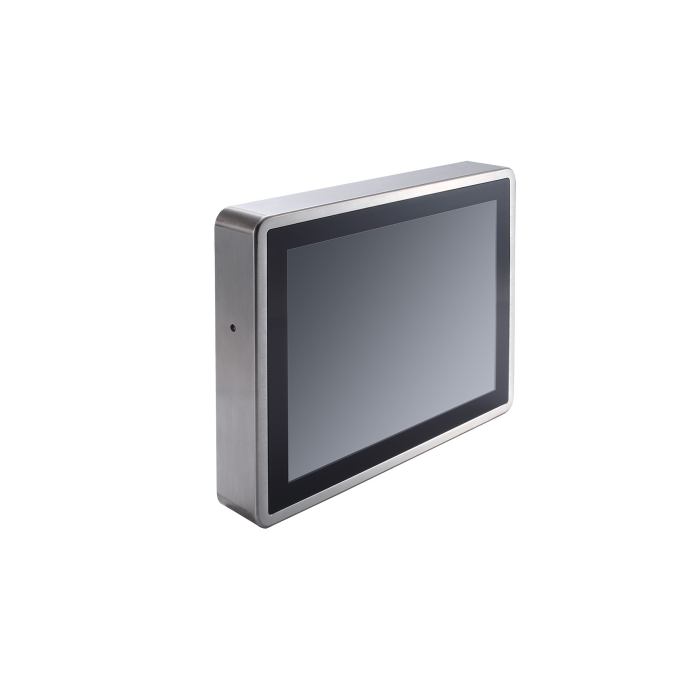

Shop GOT815L-511 15" XGA Fanless Panel PC

SKU: GOT815L-511

15" XGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5-7300U Processor

Datasheet

Description

15" XGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5-7300U Processor and Flat Bezel Design (-20°C to +50°C)

· 15" XGA TFT flat bezel LCD display

· IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design

· Full stainless steel enclosure with type 316

· -20°C to +50°C wide operating temperature range

· Fanless design with Intel® Core™ i5-7300U processor

· Optional Wi-Fi/3G kit for wireless network connectivity

· 9 to 36 VDC wide range power input

· Supports suspension and VESA mount

· M12 type connectors for harsh environments

Download

Data Sheet

More Information

Brand

Axiomtek

Specifications

LCD Panel	15" XGA TFT LCD 420 nits 1024 x 768 pixels
CPU	Intel® Core™ i5-7300U 3.5 GHz (Kaby Lake)
Chipset	SoC integrated
System Memory	1 x 260-pin SO-DIMM DDR4-2133, up to 16GB
BIOS	AMI
COM	2 x RS-232/422/485 (default RS-232, M12 A-coded)
USB	4 x USB 2.0 (M12 A-coded)
Ethernet	1 x 10/100/1000 Mbps (Intel® I210-IT; M12 X-coded)
Display	N/A
Audio	N/A
Storage	1 x 2.5" SSD HDD or 1 x 2.5" SATA HDD (9.5 mm height)
Expansion	1 x Full-size PCI Express Mini Card slot 1 x Half-size PCI Express Mini Card slot
Others	1 x 2.5" SSD HDD or 1 x 2.5" SATA HDD (9.5 mm height)
Touchscreen	5-wire resistive touch or projected capacitive multi-touch
Front Bezel	Stainless type 316
Power Supply	9 to 36 VDC
Power Comsumption	45W
Watchdog Timer	255 levels, 1 to 255 sec.
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Relative Humidity	10% to 95% @ +40°C, non-condensing
Vibration	1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)	382 x 55 x 305 mm (15.4" x 2.17" x 12.01")
Weight (net/gross)	5.2 kg (11.46 lb)/8.4 kg (18.5 1b)
Certifications	CE
EOS	Windows® 10 IoT, Windows® 10
Mounting	Suspension VESA mount
