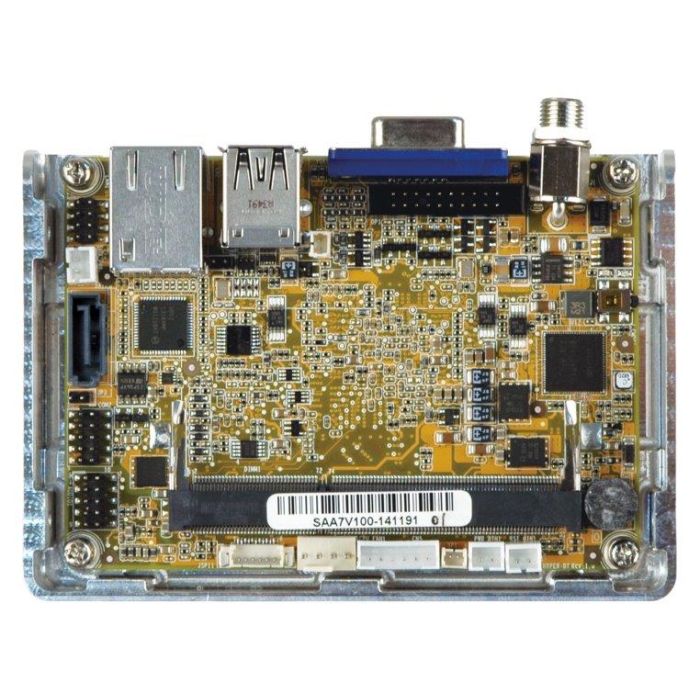

HYPER-BT Pico-ITX SBC Atom/Celeron on-board SoC
PICO-ITX SBC supports Intel® 22nm Quad-Core Celeron™ N2930 1.86GHz, J1900 2.0GHz or N2807 1.58GHz
Enquire Now
Enquire about this product:
Pico-ITX SBC supports Intel® 22nm Atom™/Celeron® on-board SoC
· Pico-ITX SBC supports Intel® 22nm Atom™ or Celeron® on-board SoC
· 12V only single voltage design for AT/ATX power by DC power jack
· VGA and iDP support dual display
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| Spec Item | Description |
|---|---|
| Display | |
| Display Output | Dual independent display 1 x VGA (up to 2560x1600@60Hz) 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz) |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | -20°C ~ 60°C |
| I/O Interface | |
| Audio | Realtek ALC662 HD codec supports 5.1-channel |
| Ethernet | Intel® I211-AT PCIe controller |
| I/O Interface | |
| I/O Interface | 1 x USB 3.0 |
| 1 x Internal RS-232 | |
| 2 x Internal USB 2.0 | |
| 1 x USB 2.0 | |
| Power | |
| Power consumption | [email protected] (Intel® Celeron® J1900 with one 4GB 1333 MHz DDR3 memory) |
| SoC | |
| SoC | SoC Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W) Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W) Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W) Intel® Atom™ E3815 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=5W) Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W) Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W) Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W) |
| Storage | |
| Storage | 1 x SATA 3Gb/s with 5V SATA power connector |
| System | |
| Memory Max. | One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM supports up to 8GB (J1900, N2930, E3845, E3827, E3826) or 4GB (N2807, E3825, E3815) |
| Watchdog Timer | |
| Watchdog Timer | Software programmable, support 1~255 sec. system reset |
