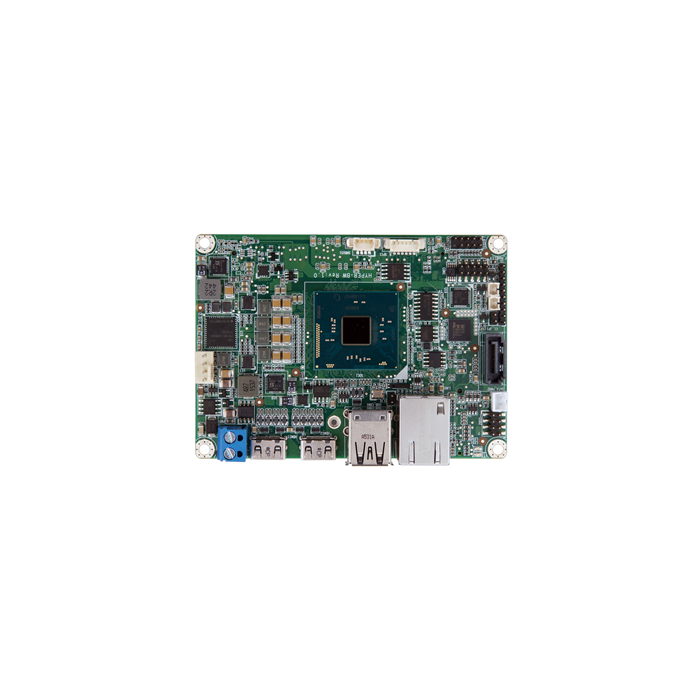

Shop HYPER-BW Pico-ITX SBC Pentium/Celeron

SKU: HYPER-BW

Pico-ITX SBC with Intel® Pentium® 14nm quad-core N3710 up to 2.56GHz, x5-E8000 up to 2.00GHz, N3060 up to 2.48GHz or N3160 up to 2.24GHz

Datasheet

Description

Pico-ITX SBC with Intel® 14nm Pentium®/Celeron® on-board SoC

· Pico-ITX SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC

· IEI jumper-less function

· Dual independent display support

· 1333/1600 MHz 1.35V DDR3L SDRAM up to 8 GB supported

· COM, USB 3.0, SATA 6Gb/s and Audio support

· 1 x M.2 B key slot for expansion possibility

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Product Data Sheet

User Manual

Brand

Axiomtek

Specifications

Spec Item	Description
Display
Display Output	Dual independent display 2 x Mini HDMI (up to 3840x2160@30Hz)
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	-20°C ~ 60°C
I/O Interface
Audio	1 x HD audio(2 x 5 pin, support 7.1 channel HD audiou by AC-KIT-892HD-R10)
Ethernet	LAN1: Realtek RTL8111 controller
I/O Interface
I/O Interface	2 x Internal USB 2.0
	1 x USB 3.0
	1 x USB 2.0
	1 x Internal RS-232
Power
Power consumption	[email protected] (Intel® Pentium® processor N3710 with 8 GB 1600 MHz DDR3L memory)
SoC
SoC	Intel® Pentium® Braswell N3710 on-board SoC (2.56GHz, quad-core, 2MB cache, TDP=6W) Intel® Celeron® Braswell N3160 on-board SoC (2.24Hz, quad-core, 2MB cache, TDP=6W) Intel® Celeron® Braswell N3060 on-board SoC (2.48GHz, dual-core, 2MB cache, TDP=6W) Intel® Celeron® Braswell N3010 on-board SoC (2.24GHz, dual-core, 2MB cache, TDP=4W) Intel® Atom® x5-E8000 on-board SoC(up to 2.00 GHz, quad-core, 2M cache, TDP=5W)
Storage
Storage	1 x SATA 6G/s with 5V SATA power connector
System
Memory Max.	One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot support up to 8 GB
Watchdog Timer
Watchdog Timer	Software programmable supports 1~255 sec. system reset
