Shop HYPER-KBN PICO-ITX SBC AMD Embedded

End of Life

SKU: HYPER-KBN

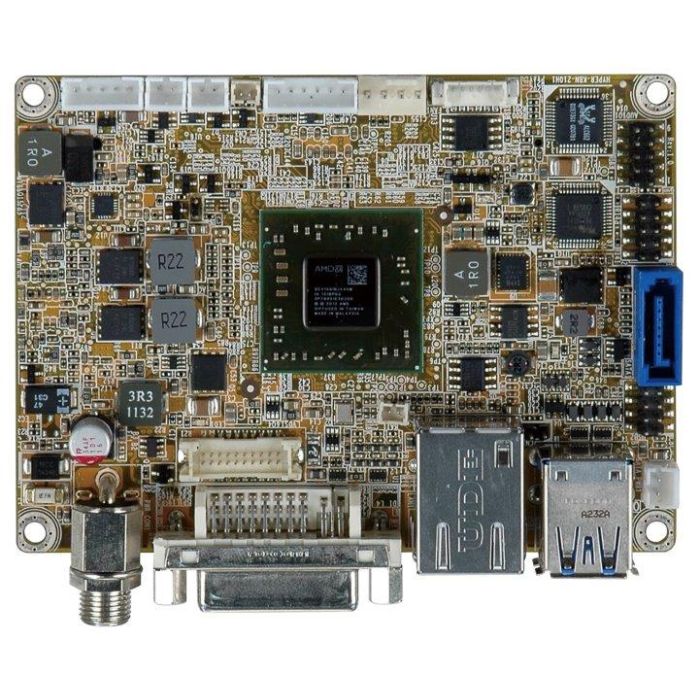

PICO-ITX SBC with AMD G-Series GX-415GA or GX-210HA SoC processor

Datasheet

Description

Pico-ITX SBC Supports AMD® Embedded G-Series SoC

· Pico-ITX form fator with AMD® Embedded G-Series SoC supports DDR3/DDR3L up to 1600 MHz memory

· 12V only single voltage design for AT/ATX power by DC power jack

· DVI-I and 18-bit singel-channel LVDS support for dual display

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Product Data Sheet

Brand

Axiomtek

Specifications

Spec Item	Description
Display
Display	DVI-I (DVI-D up to 1920x1200@60Hz, VGA up to 2048x1536@60Hz) 18-bit single-channel LVDS (up to 1600x900@60Hz)
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	0°C ~ 60°C
I/O Interface
Audio	Realtek AL662 HD Audio codec 1 x Analog audio (2x5 pin)
Ethernet	LAN: Realtek RTL8111E controllers with ASF2.0 supported
I/O Interface
I/O Interface	2 x USB 3.0
	1 x Internal RS-232
	2 x Internal USB 2.0
Power
Power consumption	[email protected] (AMD GX-415GA 1.5GHz CPU with one 2GB 1333 MHz DDR3 memory)
System
CPU	GX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W) GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W) (support fanless solution) GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W) GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W)
CPU Socket	On Board
Memory Max.	One 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMM supports up to 8GB
Storage	1 x SATA 6Gb/s with 5V SATA power connector
Watchdog Timer
Watchdog Timer	Software programmable, support 1~255 sec. system reset
