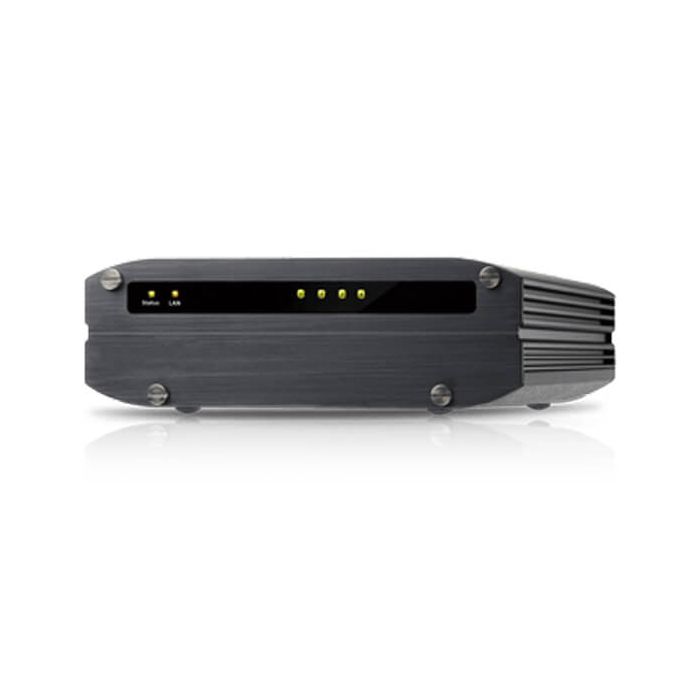

Shop IBX-660 Intel Atom E3845, 4x 2.5" SSD

End of Life

SKU: IBX-660

Industrial edge server with four 2.5" drive bays, Intel® Atom™ E3845 quad-core 1.9GHz

Datasheet

Description

Industrial edge server with four 2.5" drive bays, Intel® Atom™ E3845 quad-core 1.9GHz

● Four 2.5＂ removable drive bays, and maximum storage capacity support up to 8TB

● 32GB eMMC (storage & boot)

● Rugged design with high resistance to vibration and impact

● Dust-resistant and fanless design

● Wide operating temperature range: -40°C ~ 50°C (-40°F ~ 122°F)

Product Data Sheet

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Form factor
SBC Form Factor	CPU: Intel® Atom™ E3845 quad-core 1.91GHz Chipset: SoC Memory: 2 x 204-pin DDR3L SO-DIMM. 8GB pre-installed (system max. 8GB) eMMC 32GB(storage and boot) Power: Input 1: DC power jack, external power adaptor, 12V, 90W, Input: 100-240V Input 2: 4-pin terminal block, 9-36V DC Consumption: 40W (Intel® Atom® E3845 CPU with 8 GB 1600 MHz DDR3L memory, 4 x 2.5" HDD) Safety / EMC: CE/FCC Supported OS: Microsoft® Windows® 10 IoT Enterprise / Linux
I/O Interface
I/O Ports	2 x USB 3.0 2 x USB 2.0 2 x RJ-45 PCIe GbE by Intel® I210 1 x HDMI Display port (Resolution: up to 1080p support) 1 x Mic-in 1 x Audio out
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini slot 1 x onboard SIM card slot
System
Cooling method / System Fan	Fanless
Drive Bays	4 x 2.5"" SATA HDD/SSD, removable drive bay
Indicator&Buttons
Indicators	LED Indicators: Status, LAN, HDD 1-4
Physical Characteristics
Construction	Wall-mount, DIN-rail mount
Color
Color	Black
Dimensions
Dimensions	180 x 247 x 59 mm ( WxDxH )
Weight
Weight	1.11 kg/3.2 kg ( Net/Gross )
Environment
Operating Temperature	-40°C ~ 50°C
