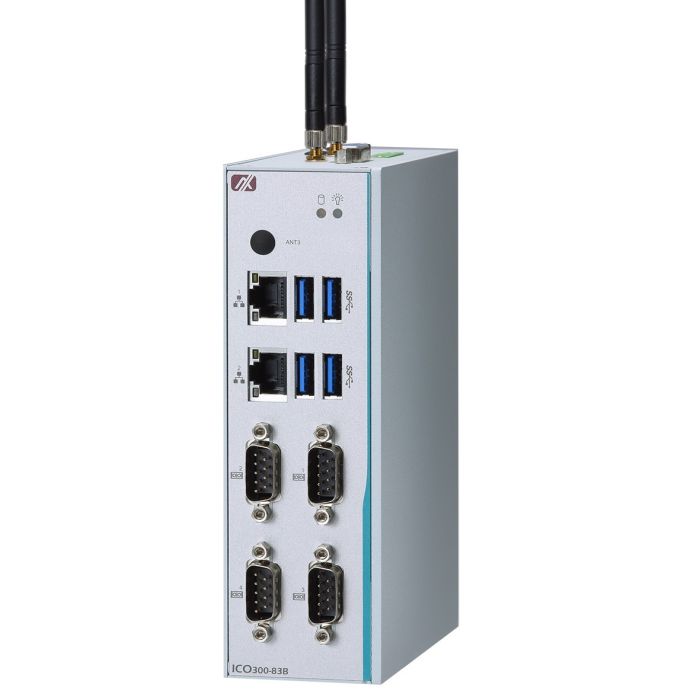

ICO300-83B DIN-Rail Fanless Embedded System

Out of stock
SKU:
ICO300-83B
Brand: Axiomtek

Intel Celeron Processor N3350 or Pentium Processor N4200, Isolated COM, LAN, and DIO

Key Features:

  • Cost-effective with fanless and cableless design
  • Intel Celeron processor N3350 or Pentium processor N4200, reliable F1 stepping version CPU
  • 4 isolated COM, 4 USB, and 2 GbE LAN
  • 8-bit programmable DIO for IoT gateway applications
  • Wide operating temperature range from -40°C to +70°C
  • 12 to 24 VDC wide range power input
  • OVP, UVP, OCP, RPP power protection design
  • AMS.AXView intelligent remote monitoring software for IIoT

Enquire Now
Enquire about this product:

The ICO300-83B is powered by the low-power consumption Intel Celeron processor N3350 (Formerly codename: Apollo Lake). With an extended temperature range of -20°C to 70°C (-40°C to +70°C for option), a wide voltage range of 12V-24V DC power input with overvoltage and reverse protection, and up to 2G vibration endurance, the ICO300-proven 83B's rugged construction ensures harsh operating conditions. It has one DDR3L-1866 SO-DIMM slot that can hold up to 8 GB of system memory. Furthermore, the ICO300-83B has two full-size PCI Express Mini Card slots, one for a mSATA storage card and the other for 3G/GPRS/Wi-Fi, allowing it to provide flexible communication and data transfer options when used as an IIoT gateway.

Key Features:

  • Cost-effective with fanless and cableless design
  • Intel Celeron processor N3350 or Pentium processor N4200, reliable F1 stepping version CPU
  • 4 isolated COM, 4 USB, and 2 GbE LAN
  • 8-bit programmable DIO for IoT gateway applications
  • Wide operating temperature range from -40°C to +70°C
  • 12 to 24 VDC wide range power input
  • OVP, UVP, OCP, RPP power protection design
  • AMS.AXView intelligent remote monitoring software for IIoT

This product is listed in Industrial Automation, Mining, Axiomtek, Embedded Computers
CPU
  • Intel Celeron processor N3350 (1.1 GHz, Dual Core)
  • Intel Pentium processor N4200 (1.1 GHz, Quad Core) (By request)
Chipset
  • SoC integrated
System Memory
  • 1 x SO-DIMM DDR3L-1866, up to 8GB
COM
  • 4 x isolated RS-232/422/485 (ICO300-83B-4I COM)
  • 2 x isolated RS-232/422/485 (ICO300-83B-2I COM)
  • 4 x RS-232/422/485 (ICO300-83B-4 COM)
USB
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps
  • Intel® i211AT for ICO300-83B
    Intel® i210IT for ICO300-83B-WT
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x DI/DO (8-bit programmable, DB9 female connector)
Analog Input
  • N/A
Display
  • 1 x VGA or 1 x HDMI (optional)
Wireless
  • 1 x Full-size PCI Express Mini Card slot with SIM slot
  • (for wireless module)
  • 1 x Full-size PCI Express Mini Card slot with mSATA (for wireless module or mSATA)
Storage
  • 1 x 2.5" SATA drive (max. 9.5 mm height)
  • mSATA shared with mPCIe slot
Others
  • 1 x DC power input with terminal block
Power Supply
  • 12 to 24 VDC, 2.82 to 1.34A (ICO300-83B-N3350)
  • 12 to 24 VDC, 3.27 to 1.62A (ICO300-83B-N4200)
  • Protection: OVP (±20%), reverse protection
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
  • -40°C to +70°C (-40°F to +158°F) (ICO300-83B-WT)
Relative Humidity
  • 10% to 95%
Vibration
  • 2 Gms (5 to 500Hz, amplitude 0.35 mm; operation/storage/transport)
Dimensions
(W x D x H)
  • 48 x 110 x 155 mm (1.88" x 4.33" x 6.1")
Weight (net/gross)
  • 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications
  • CE, FCC
EOS Support
  • Windows® 10 IoT
  • Linux support package (By Request)
Software Support
  • AXView 2.0
Mounting
  • DIN rail
  • Wall Mounting
