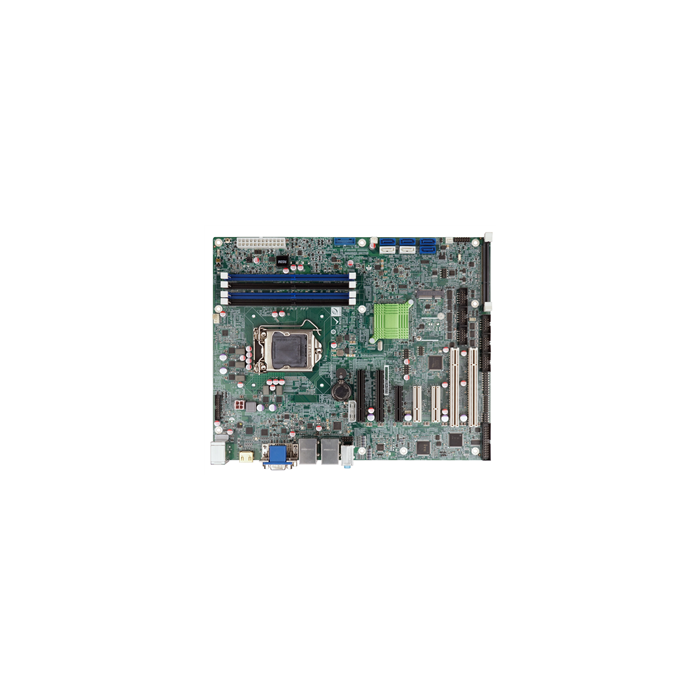

IMBA-Q170-i2 ATX Motherboard
In stock
SKU:
IMBA-Q170-i2
Brand: IEI Integration Corp.
Category: Single Board Computers
ATX motherboard supports 14nm LGA1151 Intel CPU Intel Q170
Enquire Now
Enquire about this product
ATX motherboard supports 14nm LGA1151 Intel CPU Intel Q170
· LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
· Dual-channel DDR4 2133 MHz
· Support triple display with HDMI, DVI and VGA
· Support USB 3.0, SATA 6Gb/s and PCI Express Gen3
· Support IPMI 2.0 via iRIS-2400 module
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| Spec Item | Description |
|---|---|
| Dimensions | |
| Dimensions | 244mm x 305mm |
| Display | |
| Display Output | Triple independent display 1 x VGA (up to 1920x1200@60 Hz) 1 x DVI-D (up to 2560x1600@60Hz) 1 x HDMI 2.0 (up to 4096x2160@60Hz) 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | -20°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots | 1 x Full-size PCIe Mini card slot (support mSATA) 2 x PCI slot 2 x PCIe x 8 slot (Gen3) 3 x PCIe x 4 slot (Gen3) |
| I/O Interface | |
| Audio | Realtek ALC662 HD codec supports 5.1-channel 3 x Audio jacks (line-out, line-in, mic-in) on rear IO 1 x Front audio (2x5 pin) |
| Digital I/O | 8-bit digital I/O (2x5 pin) |
| Ethernet | LAN1: Intel® I219LM with Intel® AMT 11.0 support LAN2: Intel® I210AT PCIe controller |
| I/O Interface | |
| I/O Interface | 2 x Internal RS-232/422/485 |
| 1 x KB/MS | |
| 1 x Internal USB 3.0 | |
| 1 x LPT | |
| 4 x Internal RS-232 | |
| 5 x Internal USB 2.0 | |
| Option | |
| iRIS | 1 x iRIS-2400 slot |
| Power | |
| Power consumption | 3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSB@3.4A (Intel® Core™ i7 6700K 4.0GHz CPU with 32 GB (four 4 GB) 2133 MHz DDR4 memory) |
| System | |
| Chipset | Intel® Q170 |
| CPU | LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor |
| Memory Max. | Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB |
