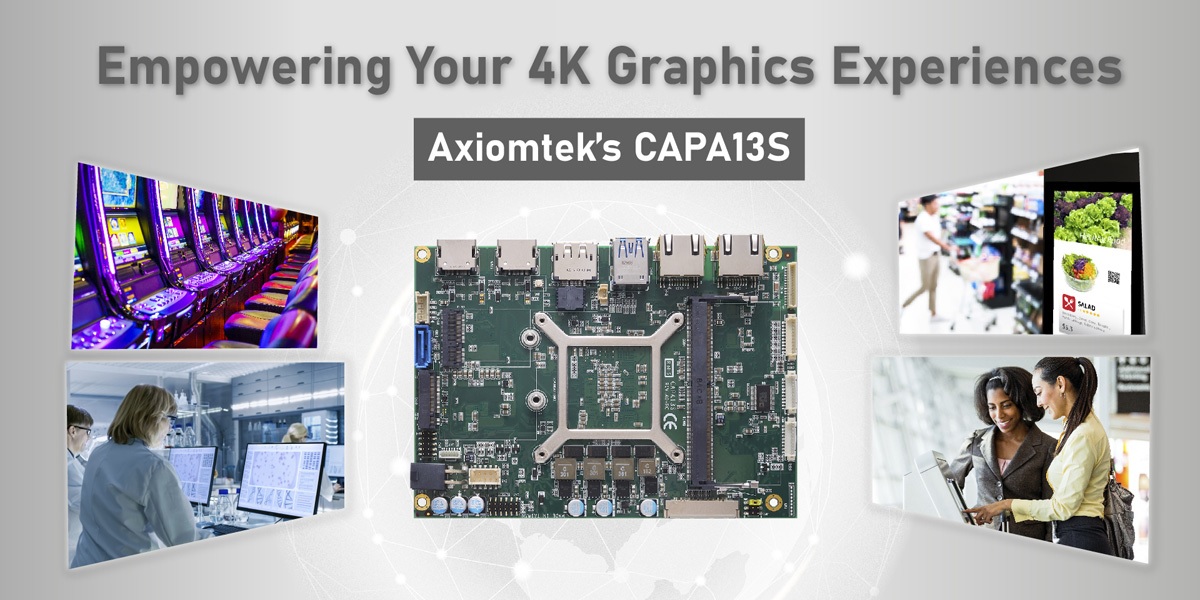

Axiomtek’s 3.5” Embedded Board with AMD Ryzen™ V1807B/V1605B Processor - CAPA13S
Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to announce the CAPA13S, a high-performance quad-view 3.5" embedded single board computers powered by the onboard AMD Ryzen™ Embedded V1807B/V1605B processor with AMD Radeon™ GPU.
It is especially ideal for graphics-intensive applications such as medical imaging, digital signage, video surveillance, 3D simulators, optical quality control, kiosks, thin clients. This industrial motherboard is designed for operational stability in harsh environments with a wide operating temperature range from -20°C to +60°C.
Axiomtek has experienced extraordinary growth in the past 30 years because of our people, their years of learning which resulted in our tremendous industry experience, and desire to deliver well-rounded, easy-to-integrate solutions to our customers. These factors have influenced us to invest in a growing team of engineers including software, hardware, firmware and application engineers.
The high-performance CAPA13S responses to the need of delivering immersive 4K graphics and multi-screen display as well as vivid 3D graphics.
It delivers powerful 3D and 4K graphics through the integrated AMD Radeon™ RX Vega graphics and has a quad display capability through two HDMI, one DisplayPort++ and one eDP interfaces for embedded solutions that require a high-resolution display and full-graphics feature.
In addition, the CAPA13S has three GbE LAN ports to connect with industrial cameras to help system integrators drive their projects forward. This scalable embedded computers is ready for versatile applications in industrial, healthcare, gaming, and retail.
Its onboard CPU is attached on the rear side of the board to aid with heat dissipation and offer flexibility for easy system integration and minimum maintenance. One 260-pin SO-DIMM socket supports up to 16GB of DDR4-2400 (V1605B) and DDR4-3200 (V1807B) memory.
Moreover, the CAPA13S offers multiple expansion interfaces with one M.2 Key E slot for wireless modules and one M.2 key B slot for storage cards. The system has a +12V DC power input.
To satisfy the increasing demands of connecting more peripheral devices, the CAPA13S provides two USB 3.2 Gen2, two USB 2.0, three GbE LAN, one RS-232, one RS-232/422/485, one SATA-600, 8-channel DIO, and one HD audio. It supports Windows® 10 operation system.
- AMD Ryzen™ Embedded V1807B and V1605B APU
- 1 DDR4 SO-DIMM for up to 16GB of memory
- Supports quad-view 4K/2K display
- 3 GbE LAN
- M.2 Key E
- M.2 Key B
