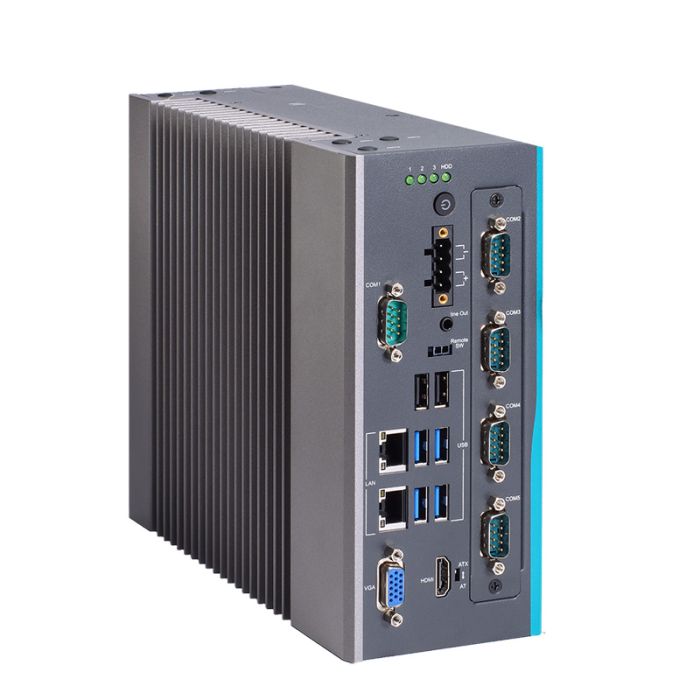

IPC960-525-FL Fanless Industrial System 8th/9th Gen CPU

In stock
SKU:
IPC960-525-N-DC-FL-Q370
Brand: Axiomtek

The Axiomtek IPC960-525-FL is a 8th/9th Gen Intel® Core™ i7/i5/i3 & Celeron® Fanless Industrial System with Intel® H310/Intel® Q370 chipset and flexible Front-access I/O. Supporting a range of IO modules extra RS23/422/485 ports or GbE ports can be added. Designed as a fanless system it can operation from -10°C to +60°C and supports 2-slot/4-slot expansion kit for further expansion. Q370 chipset versions also support RAID.


Enquire Now
Enquire about this product

The IPC950-525-FL is made of extruded aluminium and heavy-duty cold-rolled steel. The motherboard is outfitted with Intel 8th or 9th generation i3, i5, and i7 processors. Celeron CPUs from the same generation are also supported, and all processors use the H310 and Q370 chipsets. The two memory modules offered can use DDR4-2400/2666 un-buffered SO-DIMM RAM with a maximum capacity of 64GB. With a power adapter, the unit can operate at a voltage range of 19V to 30V. The working temperature can range from -10 to 60 degrees Celsius. There are also expansion opportunities since there are two full-sized PCIe mini card slots and one SIM card slot.

Key Features:

  • LGA1151 Socket 9th/8th gen Intel® Core™ processor, up to 65W
  • M.2 Key B slot for 5G wireless connection (optional)
  • Supports RAID 0,1 (Intel® Q370)
  • Supports Power-on delay function
  • Supports TPM 2.0
  • Supports AMT 12 (Intel® Q370)
  • Supports 2-slot/4-slot expansion kit for further expansion

This product is listed in Industrial Automation, Mining, Transport, Axiomtek, Embedded Computers
CPU
  • 9th/8th gen Intel Core processor, up to 65W
Chipset
  • Intel H310/Intel Q370
System Memory
  • 2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232)
  • More COM ports available from extension I/O modules
USB
  • Intel®H310:
  • 4 x USB 3.1 Gen1
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
  • Intel®Q370:
  • 4 x USB 3.1 Gen2
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
  • More USB ports available from extension I/O modules
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211-AT & i219-LM)
  • More LAN ports available from extension I/O modules
Display
  • 1 x VGA
  • 1 x HDMI
Digital I/O
  • Available from extension I/O modules
Audio
  • 1 x Line-out
Storage
  • -10°C to +60°C (+14°F to +140°F) with Intel®, 9th/8th gen Intel® Core™ and W.T. HDD/SSD
Expansion
  • 1 x SIM slot
  • Intel® H310: 1 x Full-size PCI Express Mini Card slot (USB interface)
  • Intel® Q370: 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) or 1 x M.2 Key B 3050 socket
Others
  • TPM 2.0
  • AMT 12
Power Supply
  • Type: ATX/AT
  • Input: 24 VDC (uMin=19V/uMax=30V)
Construction
  • Aluminium extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -10°C to +60°C (+14°F to +140°F) with Intel®, 9th/8th gen Intel® Core™ and W.T. HDD/SSD
Relative Humidity
  • 10% to 90%, non-condensing
Dimensions
(W x D x H)
  • 83.5 x 192 x 230 mm (3.28" x 7.54" x 9.04")
Weight (net/gross)
  • 3.82 kg (8.43 lb)/4.78 kg (10.55 lb)
