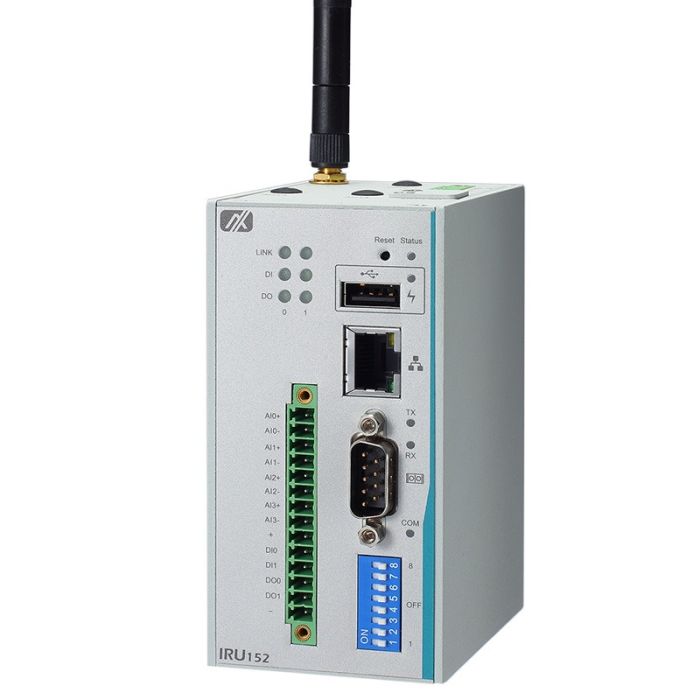

IRU152-I - i.MX 6UL, embedded Linux O/S

In stock
SKU:
IRU152-I
Brand: Axiomtek

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, DIO (2-in/2-out), 4 AI Channels (16-bit, 250 kS/s, 0 - 20mA, ±20mA) and 2 PCIe Mini Card Slots


Enquire Now
Enquire about this product:

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, DIO (2-in/2-out), 4 AI Channels (16-bit, 250 kS/s, 0 - 20mA, ±20mA) and 2 PCIe Mini Card Slots



·         RISC-based (i.MX 6UltraLite) processor 528 MHz

·         512MB DDR3 SDRAM onboard

·         8GB eMMC flash onboard

·         2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa)

·         4 isolated analog input channels (16-bit, 250 kS/s, 0 - 20mA, ±20mA)

·         1 isolated COM port

·         1 isolated DIO (2-in/2-out)

·         Embedded Linux operating system (Yocto)

·         Wide operating temperature range from -40°C to +70°C

·         Supports LabVIEW versions later than 2016

·         Supports OPC UA


This product is listed in Industrial Automation, Mining, Transport, Axiomtek, Industrial Computing, Embedded Computers
CPU
  • NXP i.MX 6 UL processor, ARMR CortexR-A7 @ 528 MHz
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3-1600 onboard, 512 MB
COM
  • 1 x RS-232/422/485
  • Magnetic isolation protection 2KV
USB
  • 1 x USB 2.0 (type A)
Ethernet
  • 1 x 10/100 Mbps Ethernet
  • Magnetic isolation protection 1.5KV
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x DIO (2-in/2-out) with isolation 2KV
Analog Input
  • 4 x AI (isolation)
  • Channels: 4 (Differential)
  • Input impedance: 249Ω
  • Input range: 0 - 20mA, ±20mA
  • Resolution:16-bit
  • Sampling rate: 10 S/s to 250 kS/s
  • FIFO buffer size: 2,048 samples
  • Over voltage protection: ±55V
  • Trigger source: analog or digital (software selectable)
Display
  • N/A
Wireless
  • 2 x PCI Express Mini Card slot (only USB signal)
  • 1 x SIM Card socket
Storage
  • 1 x eMMC 8GB flash onboard
Others
  • 1 x EEPPROM (2 Kb)
  • Console/COM switch
  • ID setting 0 to 255
Power Supply
  • 9 to 48 VDC power input range
Watchdog Timer
  • 0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 10% to 95%
Vibration
  • 2 Gms @ (10 to 150Hz sine wave; operation)
Dimensions
(W x D x H)
  • 55 x 82 x 108 mm (2.16" x 3.23" x 4.25")
Weight (net/gross)
  • 0.32 kg (0.71 lb)/0.53 kg (1.17 lb)
Certifications
  • FCC part 15, Heavy Industrial CE
EOS Support
  • Linux Kernel 3.14.52
  • Yocto FIDO 1.8
Mounting
  • DIN-rail
