Shop ITC150WM 15.6" Slim Bezel Panel PC

SKU: ITC150WM-SDMxxxx-xxxxxx

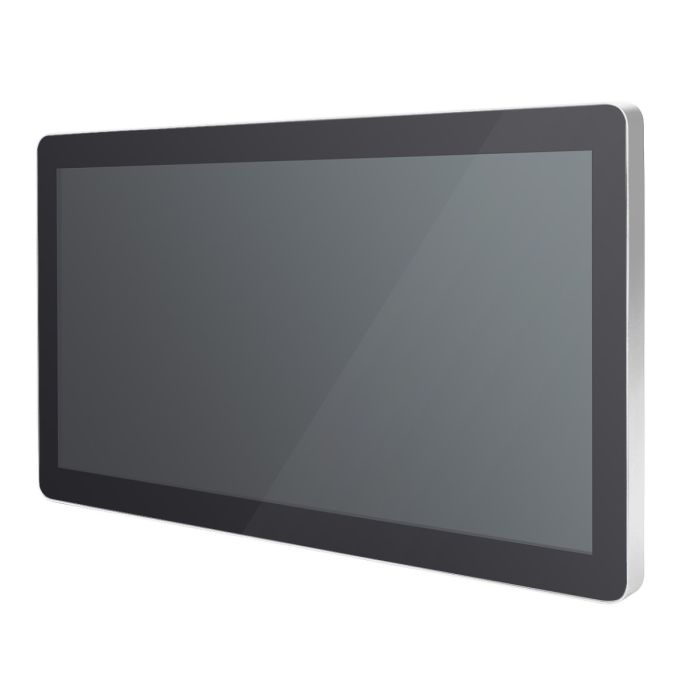

15.6" FHD TFT-LCD Slim Bezel Modular Panel PC Powered by Intel® Smart Display Module
(SDM) CPU Card

Datasheet

Description

· 15.6" full HD TFT-LCD

· Aspect ratio: 16:9; brightness: 300 nits

· Slim bezel shape under 40 mm thickness

· Projected capacity touch supported, 10-point touch

· Swappable CPU card design

· Supports Intel® SDM CPU card Metal frame structure for various application

· Supports add-on modules and mounting kits (optional)

Download

Datasheet

More Information

Brand	Axiomtek
Specifications	Front Bezel metallic front bezel, IP54 LCD Panel Main System Display Type 15.6" FHD TFT-LCD Brightness (cd/m2) 300 nits 16:9 Intel® SDM Small (SDM-S, 60 x 100 mm) Intel® SDM Large (SDM-L, 175 x 100 mm) Power Supply 60W (12V@5A) AC to DC power adapter Power Consumption Average 45W Dimensions 386 mm (15.1”) (W) x 40 mm (1.6”) (D) x 241 mm (9.5”) (H) Weight (net/gross) 1.15 kg (2.42 lb)/5.4kg (11.9 lb) Operating Temperature Operating Humidity Certications 0°C to +40°C (+32°F to +104°F) 20% - 80%, non-condensing CE, FCC Class A, and CB

Brand

Axiomtek

Specifications

Front Bezel metallic front bezel, IP54
LCD Panel
Main System
Display Type 15.6" FHD TFT-LCD
Brightness (cd/m2) 300 nits 16:9
Intel® SDM Small (SDM-S, 60 x 100 mm)
Intel® SDM Large (SDM-L, 175 x 100 mm)

Power Supply 60W (12V@5A) AC to DC power adapter
Power Consumption Average 45W
Dimensions 386 mm (15.1”) (W) x 40 mm (1.6”) (D) x 241 mm (9.5”) (H)
Weight (net/gross) 1.15 kg (2.42 lb)/5.4kg (11.9 lb)
Operating Temperature
Operating Humidity
Certications
0°C to +40°C (+32°F to +104°F)
20% - 80%, non-condensing
CE, FCC Class A, and CB
