Shop IVS-300-ULT3 - i7-6600U, 4x PoE

End of Life

SKU: IVS-300-ULT3

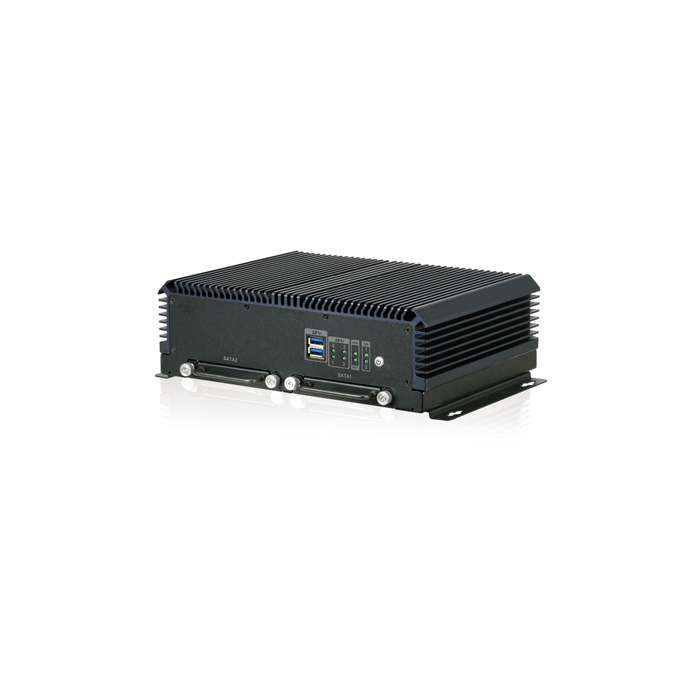

Fanless embedded system with Intel® Celeron® Processor J1900, Intel® Core™ i5-6300U (15W) Processor (ULT) or Intel® Core™ i7-6600U (15W) Processor (ULT)

Datasheet

Description

Fanless embedded system with Intel® Celeron® Processor J1900, Intel® Core™ i5-6300U (15W) Processor (ULT) or Intel® Core™ i7-6600U (15W) Processor (ULT)

● Intel® Skylake ULT /Baytrail processor

● 4 x PoE IEEE802.3af

● 2x Hot-swappable 2.5"" drive bay

● Optional 3G/Wi-Fi

● 2 x RS-232, 1 x Isolated RS-422/485

● 4 x DI/DO

● 1 x HDMI (lockable), 1 x VGA

Download

Product Data Sheet

User Manual

More Information

Specifications

Spec Item	Description
Form factor
SBC Form Factor	CPU: Intel® Skylake ULT /Baytrail processor Chipset: SoC System Memory:2 x 204-pin DDR3L SO-DIMM. 1 x 4GB pre-installed
I/O Interface
I/O Ports	2 x USB3.0 4 x PoE IEEE802.3af (one port max 15.4W) 2 x DB-9 RS-232 1 x DB-15 isolated RS-422/485 Isolated 8-bit digital I/O (4-bit input, 4-bit output) 1 x DB9 CAN-Bus/OBD-II 1 x VGA 1 x HDMI 1 x Mic in, 1 x Line out 2 x SIM slot
Expansion Slots
Expansion Slots	1 x Half-size PCIe Mini (reserved for Wi-Fi) 1 x Full-size PCIe Mini (reserved for 3G) 1 x Full-size PCIe Mini (only for skylake platform)
System
Cooling method / System Fan	Fanless
Drive Bays	2 x 2.5"" SATA 3Gb/s HDD/SSD drive bay
Indicator&Buttons
Indicators	8 x LED (4 PoE, 1 HDD, 1 Wi-Fi, 2 SIM)
Color
Color	Blue C
Dimensions
Dimensions	255 x 80 x 185
Weight
Weight	3kg/4.5kg
Environment
Operating Temperature	-20°C ~ 60°C with air flow
Humidity	5% ~ 95%, non-condensing
