Shop KINO-DBT mini-ITX SBC Atom/Celeron

SKU: KINO-DBT-xxxxxx-R10

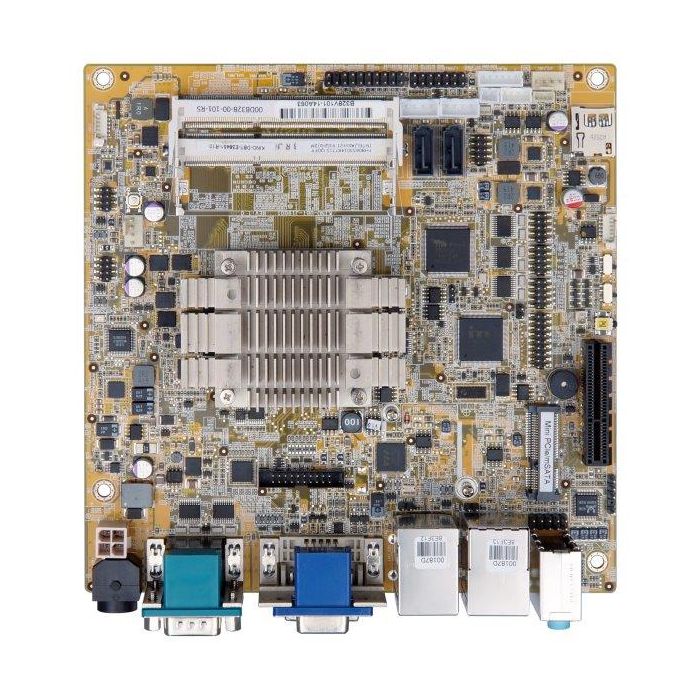

Mini-ITX SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC

Datasheet

Description

Mini-ITX SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC

· Mini-ITX SBC with 22nm Intel® Atom™ on-board SoC

· 1.35V DDR3L 1066/1333 MHz SDRAM supporting up to 8 GB of memory

· Dual independent display support

· COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and HD Audio support

· Support Intel® VT-x technology

Product Data Sheet

User Manual

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	N/A
Display
Display	Dual independent display VGA (up to 2560x1600@60 Hz) DVI-D (up to 1920x1080@60 Hz) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	-20°C ~ 60°C
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card slot 1 x microSD slot (E38XX SKU only) 1 x PCIe x4 slot (with PCIe x1 signal) 1 x mSATA share with SATA port 2
I/O Interface
Audio	Realtek ALC662 HD Audio codec supports 5.1-channel 3 x Audio jacks (line-out, line-in, mic-in) on rear IO 1 x Front audio (2x5-pin)
Digital I/O	8-bit digital I/O (2x5 pin)
Ethernet	Dual Realtek RTL8111E PCIe GbE controller
I/O Interface
I/O Interface	2 x USB 3.0
	2 x USB 2.0
	4 x Internal USB 2.0
	1 x Internal RS-422/485
	3 x Internal RS-232
	2 x RS-232
Power
Power consumption	[email protected] (Intel® Celeron® J1900 CPU with 4 GB 1333 MHz DDR3L memory)
System
CPU	Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Memory Max.	2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8 GB)
Storage	2 x SATA 3Gb/s with 5V, 12V SATA power connector
Watchdog Timer
Watchdog Timer	Software programmable supports 1~255 sec. system reset
