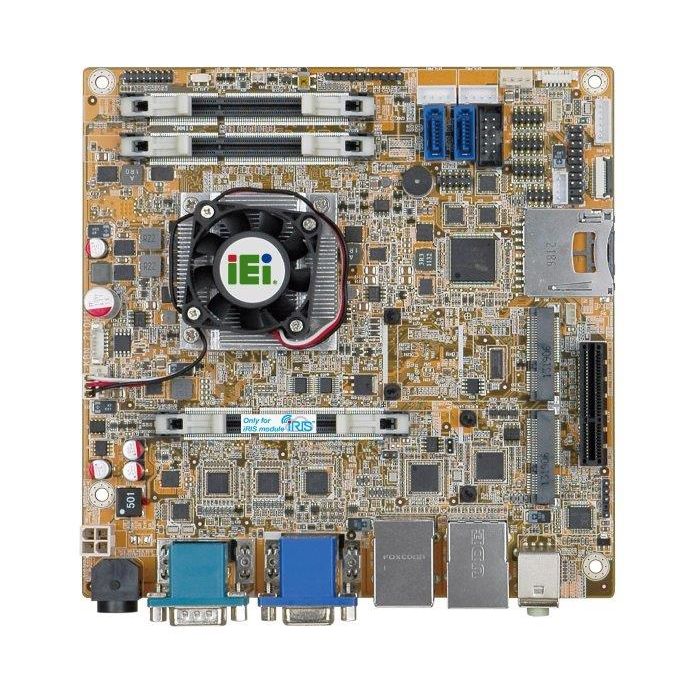

KINO-KBN-i2

In stock
SKU:
KINO-KBN-i2
Brand: IEI Integration Corp.

Category: Single Board Computers

Mini-ITX SBC with AMD® Embedded G-Series SoC

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

Mini-ITX motherboard SBC with AMD® Embedded G-Series SoC



·         Mini-ITX form factor with AMD® Embedded G-Series SoC

·         12V only single voltage design for AT/ATX power

·         Dual independent display by VGA, dual HDMI

·         Supporting dual PCIe Mini card slot with mSATA, wireless card, DOM capabilities

·         Support IPMI 2.0 through iRIS module

·         IEI One Key Recovery solution allows you to create rapid OS backup and recovery

  Single board computers, Industrial computers

IEI Integration Corp industrial Mini-ITX motherboards with high performance and multifunctional features,IEI Integration Corp industrial motherboard series are suited to applications in POS, KIOSK, vending machine, healthcare industry, etc.

Spec Item Description
CPU Cooler
CPU Cooler GX-415GA (with hearsink)
GX-210HA (with cooler)
Display
Display Dual display supported
1 x VGA
2 x HDMI
Environment
Humidity 5% ~ 95% non-condensing
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
Expansion Slots
Expansion Slots 1 x Half-size PCIe Mini card slot
1 x PCIe x4 slot
I/O Interface
Audio Realtek ALC892 HD Audio codec
Digital I/O 8-bit Programmable I/O (8-bit GPIO is for programming I/O)
Ethernet LAN1: Intel® I210-AT PCIe controller
with NCSI support
LAN2: Intel® I211-AT PCIe controller
I/O Interface 1 x RS-422/485
4 x RS-232
2 x USB 3.0
4 x USB 2.0
1 x 6-pin wafer for PS/2 KB/MS
I/O Interface
I/O Interface 2 x USB 3.0
1 x RS-422/485
4 x USB 2.0
4 x RS-232
Option
iRIS 1 x iRIS-2400 slot
Power
Power consumption [email protected] 1.45A (AMD GX-415GA 1.5GHz
CPU with 1333MHz 2GB DDR3
memory)
System
Chipset AMDR Embedded G-Series SoC
CPU AMDR Embedded G-Series SoC
CPU Socket On board
Memory Max. Two 204-pin 1600/1333MHz dualchannel
DDR3 & DDR3L SDRAM
unbuffered DIMMs
(system max. 8GB)
Storage 2 x SATA 6Gb/s with SATA power
connector
1 x mSATA (colay SATA port 2)
1 x SD card
Watchdog Timer
Watchdog Timer Software programmable and supports 1~255 sec. system reset
